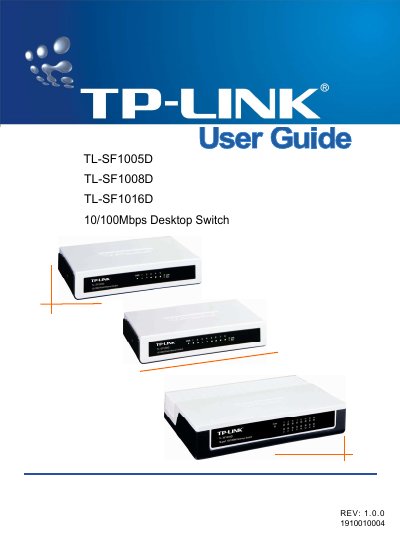

TP-Link TL-SF1005D/TL-SF1008D/TL-SF1016D 10/100Mbps Desktop Switch User Guide
This guide introduces the TL‑SF1005D, TL‑SF1008D and TL‑SF1016D desktop switches, describing their 5, 8 or 16 auto‑negotiating 10/100 Mbps RJ45 ports, LED indicators and plug‑and‑play operation. It also explains the physical layout of the front and rear panels and the required power adapter.
Installation steps cover desk mounting, power connection and initial LED checks. The appendix provides detailed specifications such as supported IEEE standards, data rates, temperature ranges, and a troubleshooting section for common LED and link issues.
TP-Link TL-SF1008D specifications
| Number of ports | 8 |
|---|---|
| Maximum full‑duplex bandwidth | 200 Mbps |
| Auto MDI/MDIX | Supported |
| Power saving | up to 40 % |
| Backplane bandwidth | 1.6 Gbps |
| Forwarding rate (10BASE‑T) | 14880 pps/port |
| Forwarding rate (100BASE‑TX) | 148800 pps/port |
| Dimensions (L×W×H) | 140 mm × 87 mm × 27.5 mm |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -40 °C to 70 °C |
| Operating humidity | 10 % to 90 % RH |
| Storage humidity | 5 % to 90 % RH |
| Power supply | External adapter |
| Supported IEEE standards | 802.3, 802.3u, 802.3x |
| Protocol | CSMA/CD |
| Duplex modes | Half and Full |
| Auto‑negotiation | Supported |
| Switching method | Store‑and‑Forward |
All TP-Link TL-SF1008D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many ports does the TL‑SF1008D have?
The TL‑SF1008D provides eight Ethernet ports.
Is any configuration required to use the TL‑SF1008D?
No configuration is needed; the switch is plug‑and‑play with auto MDI/MDIX.
How many ports does the TL‑SF1016D model have?
The TL‑SF1016D provides 16 auto‑negotiating 10/100 Mbps RJ45 ports.
From: TP-Link TL-SF1005D/TL-SF1008D/TL-SF1016D 10/100Mbps Desktop Switch User Guide
What does the Power LED indicate?
The Power LED lights continuously when the switch is receiving power.
From: TP-Link TL-SF1005D/TL-SF1008D/TL-SF1016D 10/100Mbps Desktop Switch User Guide
