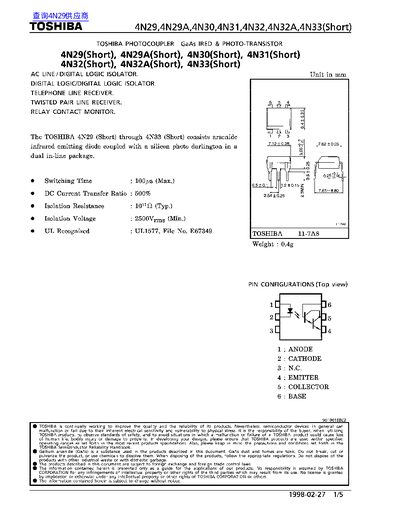

TOSHIBA 4N29 4N29A 4N30 4N31 4N32 4N32A 4N33(Short) handbook
This document provides technical specifications for the TOSHIBA 4N29, 4N29A, 4N30, 4N31, 4N32, 4N32A, and 4N33(Short) series of photocouplers. These devices consist of a gallium arsenide infrared emitting diode coupled with a silicon photo darlington in a dual in-line package.
Read onlineToshiba 4N29 specifications
| Collector-Emitter Voltage | 30 V |
|---|---|
| Isolation Resistance | 10^9 Ohm (Typ.) |
| Isolation Voltage | 2500 Vrms (Min.) |
| Switching Time | 100us (Max.) |
Source: TOSHIBA 4N29 4N29A 4N30 4N31 4N32 4N32A 4N33(Short) handbook
All Toshiba 4N29 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum switching time for these photocouplers?
The maximum switching time is 100 microseconds.
From: TOSHIBA 4N29 4N29A 4N30 4N31 4N32 4N32A 4N33(Short) handbook
What is the minimum isolation voltage rating?
The minimum isolation voltage is 2500 Vrms for one minute.
From: TOSHIBA 4N29 4N29A 4N30 4N31 4N32 4N32A 4N33(Short) handbook
What is the maximum continuous forward current?
The device can handle up to 80 mA continuous forward current.
From: Toshiba 4N29 Data Sheet
What isolation voltage does the 4N29 provide?
The minimum isolation voltage is specified as 2500 V.
From: Toshiba 4N29 Data Sheet
