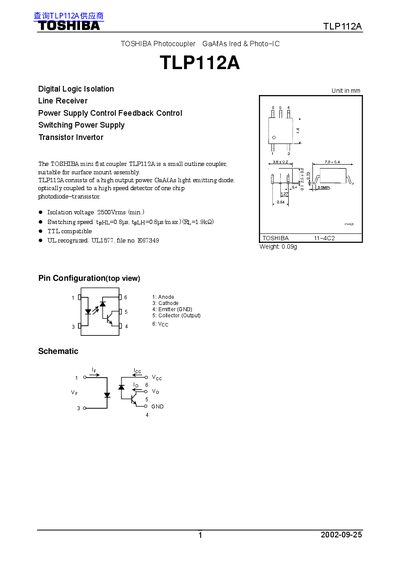

Toshiba TLP112A Photocoupler Datasheet
Datasheet 7 pages · 158 KB · EN
The TLP112A is a miniature GaAs optocoupler designed for surface‑mount assembly. It combines a high‑output power infrared LED with a fast photodiode‑transistor detector, providing isolation up to 2500 Vrms.
The document lists maximum ratings, electrical characteristics, switching performance, test circuit configurations, and safety restrictions for proper use in electronic applications such as computers, office equipment, and industrial robotics.
Toshiba TLP112 specifications
| Isolation voltage | 2500 Vrms (min) |
|---|---|
| Switching speed (tpHL / tpLH) | 0.8 µs (typ) |
| Forward current (IF) | 20 mA (continuous) |
| Supply voltage (VCC) | -0.5 V to 15 V |
| Isolation resistance | 5 × 10⁹ Ω (DC) |
| Weight | 0.09 g |
All Toshiba TLP112 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the isolation voltage rating of the TLP112A?
The device provides a minimum isolation voltage of 2500 Vrms.
What is the maximum continuous forward current for the TLP112A?
The maximum continuous forward current is 20 mA.
What is the isolation voltage rating of the TLP112?
The device provides a minimum isolation voltage of 2500 Vrms.
What is the maximum forward current for the TLP112?
The maximum forward current is 25 mA.
