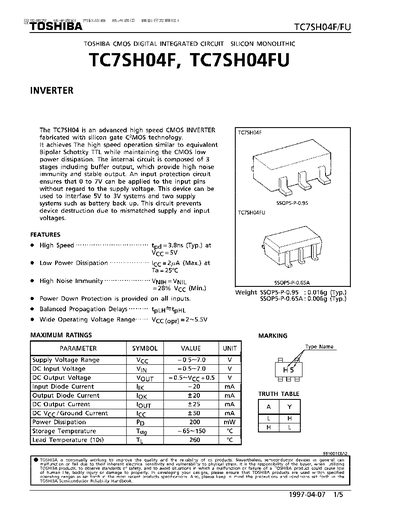

Toshiba TC7SH04F/FU Inverter Datasheet
The TC7SH04F/FU is a CMOS digital integrated circuit inverter fabricated with silicon‑gate C2MOS technology. It offers high‑speed operation comparable to bipolar Schottky TTL while maintaining the low power consumption of CMOS, and includes input protection for 0‑7 V signals.
Key specifications include a supply voltage range of 2.0 V–5.5 V, power‑down protection on all inputs, and a typical package weight of 0.016 g (SSOP5‑P‑0.95) or 0.006 g (SSOP5‑P‑0.65). The device is rated for 200 mW power dissipation and can operate from –40 °C to 85 °C.
Toshiba TC7SH04F specifications
| Supply Voltage (Vcc) | 2.0 V – 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 V – 5.5 V |
| Output Voltage (VOUT) | 0 V – Vcc+0.5 V |
| Power Dissipation (PD) | 200 mW |
| Storage Temperature | -65 °C – 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Input Diode Current | -20 mA |
| Output Diode Current | +20 mA |
| DC Output Current | 425 mA |
| Package Weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Package Weight (SSOP5‑P‑0.65) | 0.006 g (typ.) |
All Toshiba TC7SH04F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TC7SH04F/FU?
The device operates with a supply voltage (Vcc) from 2.0 V to 5.5 V.
What are the available package types and their typical weights?
It is offered in SSOP5‑P‑0.95 (≈0.016 g) and SSOP5‑P‑0.65 (≈0.006 g) packages.
What is the recommended supply voltage range for the TC7SH04F/FU?
The recommended supply voltage (Vcc) is 2.0 V to 5.5 V.
What is the maximum power dissipation of the device?
The device can dissipate up to 200 mW.
