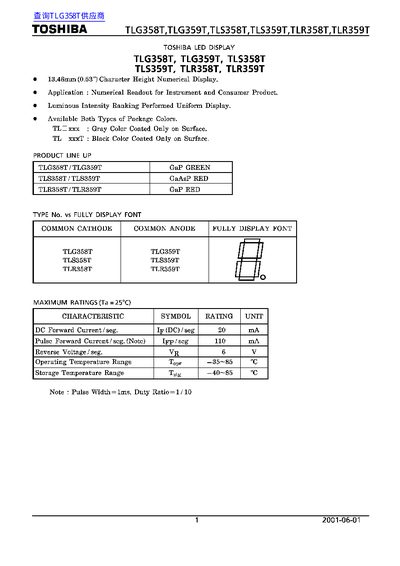

Toshiba TLG359T Datasheet
This datasheet provides electrical‑optical characteristics, maximum ratings, pin assignments, and dimensional data for the Toshiba TLG359T and related LED display devices (TLG358T, TLS358T, TLS359T, TLR358T, TLR359T). It also includes recommended handling precautions and usage restrictions.
The document is intended for designers of general electronics such as computers, office equipment, measuring instruments, and industrial robotics, and outlines the operating temperature range, forward current limits, and safety considerations for the semiconductor devices.
Toshiba TLG359 specifications
| Pulse Forward Current per segment | 110 mA |
|---|---|
| Reverse Voltage per segment | 6 V |
| Weight | 1.67 g |
Source: Toshiba TLG359T Datasheet
All Toshiba TLG359 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC forward current per segment?
The maximum DC forward current per segment is 20 mA.
What soldering temperature should be used for these LED segments?
Soldering temperature should be kept below 260 °C for 3 seconds, with the tip at least 2.0 mm from the seating plane.
