Start here

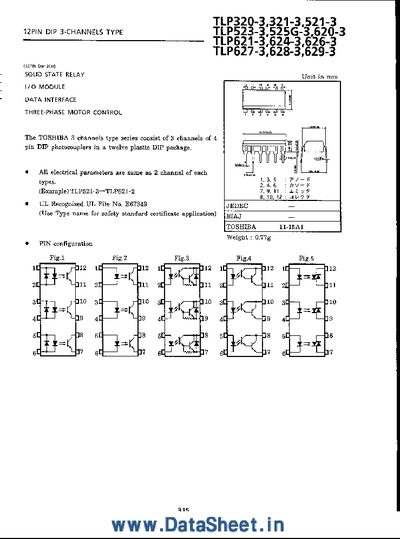

TLP320-3/321-3/521-3/523-3/525G-3/620-3/621-3/624-3/626-3/627-3/628-3/629-3 handbook(1)
The Toshiba TLP series are 12‑pin DIP solid‑state relays available in 3‑channel configurations. Each device integrates four‑pin DIP photocouplers in a single plastic package and is designed for three‑phase motor control and data interface applications.
The series includes a range of output types—AC input, transistor, Darlington, Triac, and low‑input‑current options—each with isolation voltages of 2500 V or 5000 V AC. Detailed pin configurations and electrical parameters are provided for each model, along with UL and JEDEC safety certifications.
Toshiba TLP321-3 specifications
| Package | 12‑pin DIP |
|---|---|
| Isolation Voltage (TLP320-3) | 5000 V AC |
| Isolation Voltage (TLP525G-3) | 2500 V AC |
| Output Type (TLP525G-3) | Triac Output |
| Output Type (TLP321-3) | Transistor Output |
Source: TLP320-3/321-3/521-3/523-3/525G-3/620-3/621-3/624-3/626-3/627-3/628-3/629-3 handbook(1)
All Toshiba TLP321-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the isolation voltage of the TLP320-3 relay?
The TLP320-3 has an isolation voltage of 5000 V AC.
From: TLP320-3/321-3/521-3/523-3/525G-3/620-3/621-3/624-3/626-3/627-3/628-3/629-3 handbook(1)
Which output type does the TLP525G-3 provide?
The TLP525G-3 provides a Triac output.
From: TLP320-3/321-3/521-3/523-3/525G-3/620-3/621-3/624-3/626-3/627-3/628-3/629-3 handbook(1)
