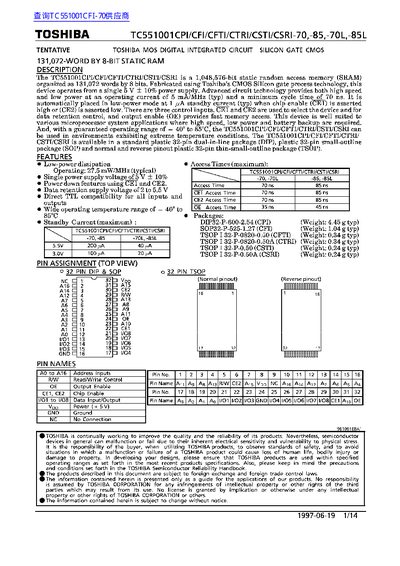

TOSHIBA TC551001CPI/CFI/CFTI/CTRI/CSTI/CSRI-70 -85 -70L -85L
The document details the specifications of the TC551001CPI/CFI/CFTI/CTRI/CSTI/CSRI, a 131,072-word by 8-bit static random access memory (SRAM). Fabricated using Toshiba's CMOS Silicon gate process technology, this device operates from a single 5 V power supply and offers high speed with low power consumption. It is designed for microprocessor system applications requiring battery backup and extreme temperature resistance.
Read onlineToshiba TC551001CP specifications
| Memory Organization | 131,072 words by 8 bits |
|---|---|
| Operating Voltage | 5 V + 10% |
| Access Time (Typ) | 70 ns |
| Operating Temperature Range | -40 to 85 C |
| Standby Current (Typ) | 1 mA |
Source: TOSHIBA TC551001CPI/CFI/CFTI/CTRI/CSTI/CSRI-70 -85 -70L -85L
All Toshiba TC551001CP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The device has a guaranteed operating range of -40 to 85°C.
From: TOSHIBA TC551001CPI/CFI/CFTI/CTRI/CSTI/CSRI-70 -85 -70L -85L
What is the typical access time?
The minimum cycle time (access time) is typically 70 ns.
From: TOSHIBA TC551001CPI/CFI/CFTI/CTRI/CSTI/CSRI-70 -85 -70L -85L
What is the maximum operating current for this RAM?
The typical operating current is 5 mA/MHz.
From: Toshiba TC551001CP 131K-Word x8-Bit Static RAM Datasheet
How many words and bits does this memory contain?
It contains 131,072 words by 8 bits.
From: Toshiba TC551001CP 131K-Word x8-Bit Static RAM Datasheet
