Start here

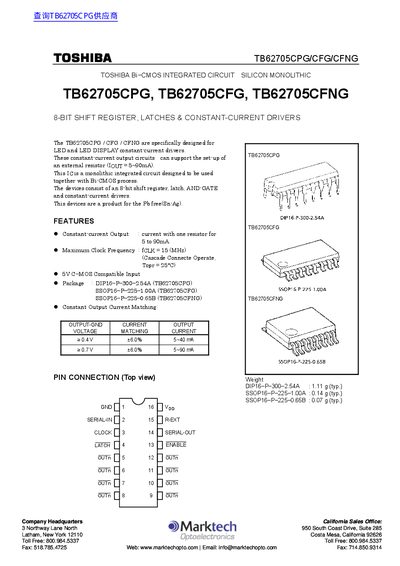

TOSHIBA TB62705CPG TB62705CFG TB62705CFNG handbook
Datasheet 15 pages · 996 KB · EN
The document describes the Toshiba TB62705CPG, CFG, and CFNG, which are monolithic integrated circuits designed specifically as constant-current drivers for LEDs. These devices combine an 8-bit shift register, latches, AND-gates, and output drivers into a single chip.
Read onlineToshiba 05CP specifications
| Output Current Range | 5 to 90 mA |
|---|---|
| Maximum Clock Frequency | 15 MHz |
| Supply Voltage | 4.5 to 5.5 V |
| Operating Temperature Range | -40 to +85 °C |
| Package Types | DIP16, SSOP16-P-225-1.00A, SSOP16-P-225-0.65B |
All Toshiba 05CP documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the function of the TB62705 series?
They are specifically designed for LED and LED display constant-current drivers.
How is the output current regulated?
By connecting an external resistor between the R-EXT pin and GND.
What is the maximum output current of the TA78DS regulators?
The TA78DS series can source up to 30 mA of output current.
From: Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
What is the dropout voltage of these regulators?
The dropout voltage is less than 0.3 V.
From: Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
