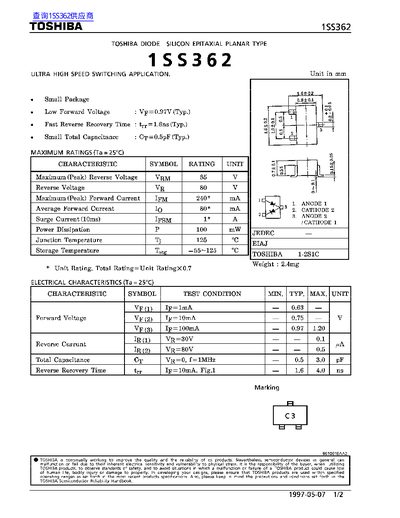

Toshiba 1SS362 Silicon Epitaxial Planar Diode Datasheet
This datasheet details the Toshiba 1SS362, a silicon epitaxial planar diode designed for ultra high speed switching applications. It features a low forward voltage of 0.97V (typical) and fast reverse recovery time of 1.6ns (typical). The diode is packaged in a small form factor with total capacitance of 0.5pF (typical). Maximum ratings include 85V reverse voltage, 240mA peak forward current, and 125°C junction temperature. Electrical characteristics are provided for operating at 25°C, including forward voltage curves and reverse recovery time data.
Read onlineToshiba 1SS362 specifications
| Forward Voltage (100mA) | 0.97 V |
|---|---|
| Reverse Recovery Time | 1.6 ns |
| Total Capacitance | 0.5 pF |
| Maximum Reverse Voltage | 85 V |
| Average Forward Current | 80 mA |
Source: Toshiba 1SS362 Silicon Epitaxial Planar Diode Datasheet
All Toshiba 1SS362 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical forward voltage at 100mA?
0.97V (typical).
From: Toshiba 1SS362 Silicon Epitaxial Planar Diode Datasheet
What is the reverse recovery time?
1.6ns (typical).
From: Toshiba 1SS362 Silicon Epitaxial Planar Diode Datasheet
What is the maximum reverse voltage rating of the Toshiba 1SS362FV diode?
The diode is rated for a reverse voltage of 85 V.
What is the typical forward voltage at 10 mA for the 1SS362FV?
At a forward current of 10 mA, the typical forward voltage is 0.75 V.
