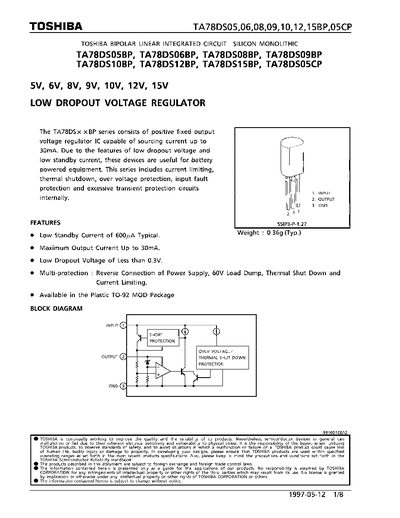

Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
The TA78DS series includes a family of low‑dropout, positive‑fixed output voltage regulators (TA78DS05, TA78DS06, TA78DS08, TA78DS09, TA78DS10, TA78DS12, TA78DS15, and TA78DS05CP) capable of delivering up to 30 mA. They are designed for battery‑powered equipment and feature low standby current, over‑voltage, thermal‑shutdown, reverse‑polarity and current‑limiting protection.
Key specifications such as maximum ratings, electrical characteristics, and typical application circuits are listed, along with a block diagram and outline drawing of the TO‑92 package. The document also notes recommended external components, such as a 100 µF capacitor for output stability.
Toshiba 15BP specifications
| Maximum Output Current | 30 mA |
|---|---|
| Low Dropout Voltage | < 0.3 V |
| Low Standby Current | 600 µA (typical) |
| Operating Input Voltage (VIN) | 29 V |
| Input Surge Voltage | 60 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Thermal Resistance (junction‑to‑ambient) | 156 °C/W |
Source: Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
All Toshiba 15BP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the TA78DS regulators?
The TA78DS series can source up to 30 mA of output current.
From: Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
What is the dropout voltage of these regulators?
The dropout voltage is less than 0.3 V.
From: Toshiba TA78DS05/06/08/09/10/12/15BP/05CP Voltage Regulator Datasheet
