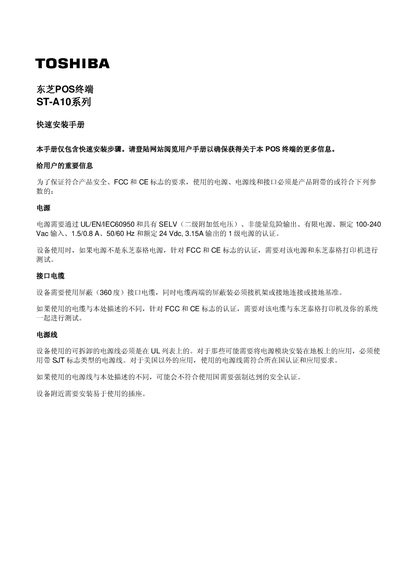

Toshiba ST-A10 POS Terminal Quick Installation Guide
The guide offers concise instructions for installing the Toshiba ST-A10 POS terminal. It outlines safety and certification requirements, power specifications, and the necessary cables and connectors.
Key sections include the installation environment, connecting the AC power cable, interfacing ports (USB, LAN, VGA, etc.), and adjusting the screen tilt and brightness. Follow the steps to ensure proper operation and compliance with FCC and CE standards. This manual is written in Chinese.
Toshiba ST-A10 specifications
| Input voltage | 100-240 Vac |
|---|---|
| Output voltage | 24 Vdc |
| Display size | 12 inches |
| USB ports | 6 × 5V, 1 × 24V |
| LAN port | 10BASE-T/100BASE-TX |
| Screen tilt angle range | 10° to 60° |
| Brightness control | Rotary knob |
Source: Toshiba ST-A10 POS Terminal Quick Installation Guide
All Toshiba ST-A10 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply specifications are required for the ST-A10 POS terminal?
The terminal requires a UL/VEN/IEC60950‑certified power supply with SELV, supporting 100‑240 Vac input, 1.5/0.8 A, 50/60 Hz, and a rated 24 Vdc, 3.15 A output.
How many USB ports does the ST-A10 have and what are their types?
It provides six standard 5 V USB ports for regular devices and one 24 V powered USB port for devices that require external power.
What is the required DC power supply for the printer?
It requires a DC 24 V supply at 3.15 A (75 W).
Which barcode types can the TRST‑A10 print?
The printer supports UPC‑A, UPC‑E, JAN13 (EAN), JAN8 (EAN), Code 39, Code 128, Interleaf 2 of 5, Codabar, PDF417, and Code 93.
