Start here

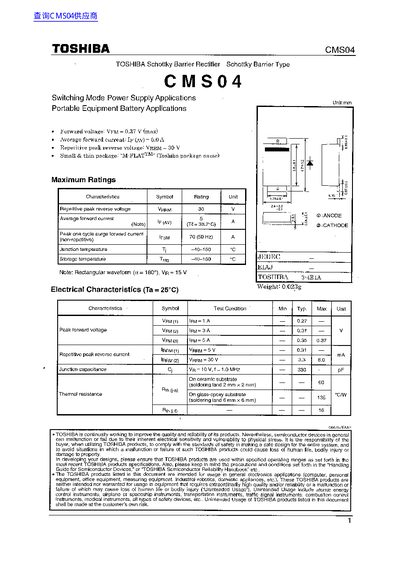

Toshiba CMS04 Schottky Barrier Rectifier Datasheet
Datasheet 4 pages · 184 KB · EN
This document is a technical datasheet for the Toshiba CMS04, a Schottky barrier type rectifier designed for switching mode power supply applications. It specifies key parameters such as a forward voltage of 0.37V (max) and an average forward current of 5.0A.
Read onlineToshiba CMS04 specifications
| Forward Voltage (VFM) | 0.37 V (max) |
|---|---|
| Repetitive Peak Reverse Voltage | 30 V |
| Peak One Cycle Surge Forward Current | 70 A (60 Hz) |
All Toshiba CMS04 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum repetitive peak reverse voltage for this rectifier?
The maximum repetitive peak reverse voltage rating is 30 V.
