Start here

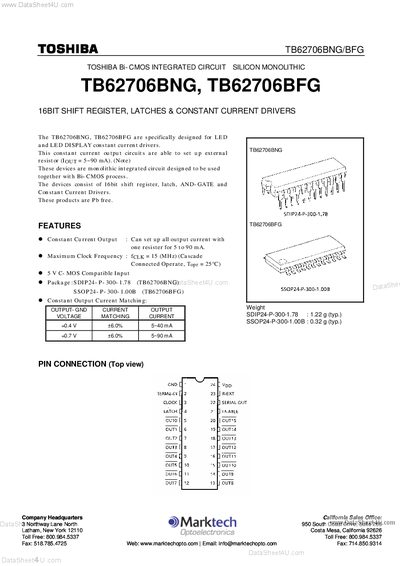

Toshiba TB62706BNG/TB62706BFG 16-Bit Shift Register Datasheet
This document describes the TB62706BNG and TB62706BFG, which are monolithic integrated circuits designed as 16-bit shift registers, latches, AND-gates, and constant current drivers. These devices are specifically intended for use in LED and LED display constant current driver applications.
Read onlineToshiba TB62706BF specifications
| Shift Register Bits | 16-bit |
|---|---|
| Maximum Clock Frequency | 15 MHz |
| Output Current Range | 5 to 90 mA |
| Operating Temperature Range | -40°C to +85°C |
| Package Types | SDIP24, SSOP24 |
Source: Toshiba TB62706BNG/TB62706BFG 16-Bit Shift Register Datasheet
All Toshiba TB62706BF documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock frequency for cascade operation?
The maximum clock frequency for cascade connected operation is 10.0 MHz.
From: Toshiba TB62706BNG/TB62706BFG 16-Bit Shift Register Datasheet
How are the output currents set?
All output current can be set using a single external resistor connected to R-EXT and GND.
From: Toshiba TB62706BNG/TB62706BFG 16-Bit Shift Register Datasheet
What is the maximum clock frequency for cascade connected operation?
The maximum clock frequency is 15 MHz when operating with cascade connection at a top temperature of 25°C.
From: Toshiba TB62706BN/TB62706BF 16-Bit Shift Register Datasheet
How is the output current set for these devices?
The output current can be configured by setting up an external resistor connected to the R-EXT terminal.
From: Toshiba TB62706BN/TB62706BF 16-Bit Shift Register Datasheet
