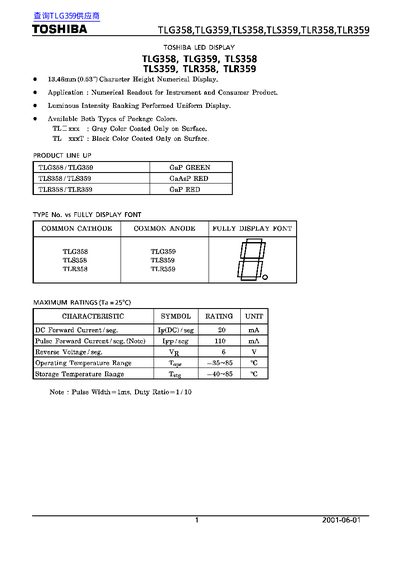

Toshiba TLG358 LED Display Datasheet
The Toshiba TLG358 series is a GaP green LED display device intended for numerical readout in instrument and consumer applications. The document provides product line‑up information for the TLG, TLS and TLR families, including package color options and common‑cathode/anode configurations.
Key specifications include forward and reverse current ratings, voltage characteristics, temperature limits, pin assignments, and handling precautions. The datasheet also outlines restrictions on product use and safety considerations for designers integrating these semiconductor devices. This manual is written in Japanese.
Toshiba TLG358 specifications
| DC Forward Current per segment | 20 mA |
|---|---|
| Pulse Forward Current per segment | 110 mA |
| Reverse Voltage per segment | 6 V |
| Operating Temperature Range | -35 °C to 85 °C |
| Storage Temperature Range | -40 °C to 85 °C |
All Toshiba TLG358 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC forward current per segment?
The maximum DC forward current is 20 mA per segment.
What is the maximum pulse forward current per segment?
The maximum pulse forward current is 110 mA per segment (1 ms pulse, 1/10 duty).
What is the maximum DC forward current per segment?
The maximum DC forward current per segment is 20 mA.
What soldering temperature should be used for these LED segments?
Soldering temperature should be kept below 260 °C for 3 seconds, with the tip at least 2.0 mm from the seating plane.
