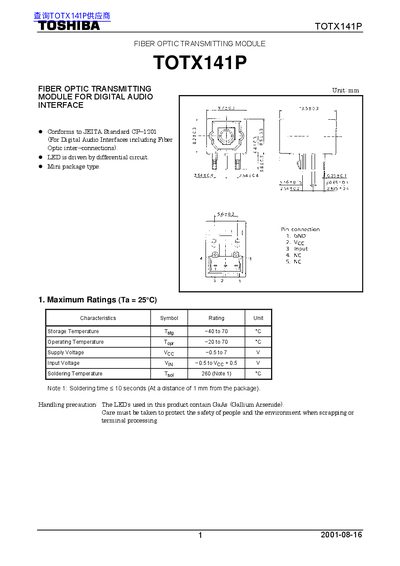

Toshiba TOTX141P Fiber Optic Transmitting Module Handbook
The TOTX141P is a fiber‑optic transmitting module designed for digital audio interfaces. It features a mini‑package type, differential LED driver, and operates over a transmission distance of up to 10 m with a data rate of up to 15 Mb/s.
The document details recommended supply voltage (2.7‑3.6 V), temperature ranges, mechanical mounting guidelines, soldering conditions, and safety precautions for handling the GaAs‑based LEDs, as well as disposal and environmental considerations.
Toshiba TOTX141 specifications
| Storage Temperature | -40 to 70 °C |
|---|---|
| Operating Temperature | -20 to 70 °C |
| Supply Voltage (Voc) | 2.7‑3.6 V |
| Data Rate | up to 15 Mb/s |
| Transmission Distance | up to 10 m |
| Fiber Output Power | -21 to -15 dBm |
| Center Emission Wavelength | 650 nm |
| Current Consumption | 15‑20 mA |
| Insertion Force | up to 39.2 N |
| Soldering Temperature | 260 °C (max) |
Source: Toshiba TOTX141P Fiber Optic Transmitting Module Handbook
