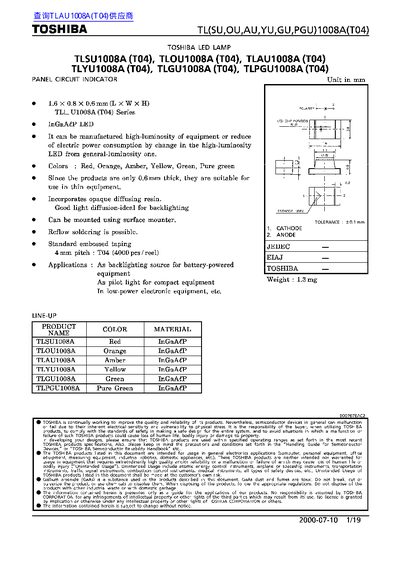

TOSHIBA TOSHIBA TLSU1008A(T04) TLOU1008A(T04) TLAU1008A(T04) TLYU1008A(T04) TLGU1008A(T04) TLPGU1008A(T04) handbook
The TL(SU,OU,AU,YU,GU,PGU)1008A series comprises six high‑luminosity LED lamps (TLSU1008A, TLOU1008A, TLAU1008A, TLYU1008A, TLGU1008A, TLPGU1008A) offered in six colors for use as backlighting sources, pilot lights, and low‑power electronic equipment. The lamps are only 0.6 mm thick, making them suitable for thin devices, and they incorporate an opaque diffusing resin for good light diffusion.
Key electrical and optical characteristics are listed, including forward current, forward voltage, luminous intensity, and wavelength. The document also details mechanical dimensions (1.6 × 0.8 × 0.6 mm), reel packaging (4000 devices per reel, 20000 per carton), and handling precautions for the GaAs material.
Toshiba T04 specifications
| Package dimensions (mm) | 1.6 × 0.8 × 0.6 |
|---|---|
| Forward current (mA) | 60 |
| Weight per device | 1.3 mg |
| Devices per reel | 4000 |
All Toshiba T04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What colors are available for the TL(SU,OU,AU,YU,GU,PGU)1008A LED lamps?
The series is offered in Red, Orange, Amber, Yellow, Green, and Pure Green.
How many devices are supplied on each reel?
Each reel contains 4,000 devices.
What colors are available for the TL series LEDs?
The TL series LEDs are offered in Red, Orange, Amber, Yellow, Green, and Pure Green.
What is the forward current rating for these LEDs?
Each LED in the series has a maximum forward current of 25 mA.
What is the maximum forward current for TLRE1008A?
The maximum forward current is 60 mA.
What colors are available for the TL series LEDs?
The LEDs are offered in Red, Orange, Yellow, Green, and Pure Green.
