Key facts
- Brand
- Toshiba
- Model
- TODX270
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-07
Start here

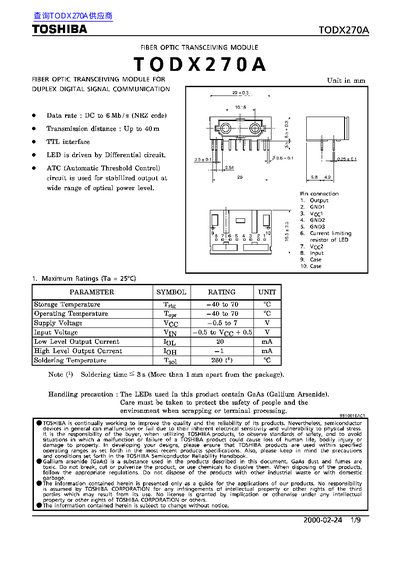

Toshiba TODX270A Fiber Optic Transceiving Module Datasheet
This datasheet details the Toshiba TODX270A fiber optic transceiving module, designed for duplex digital signal communication. It specifies electrical ratings, operating conditions, and optical performance including data rate up to 6 Mb/s and transmission distance up to 40m. The document includes application circuits, precautions for use, and handling guidelines for soldering and environmental conditions.
Read onlineToshiba TODX270 specifications
| Data Rate | DC to 6 Mb/s (NRZ code) |
|---|---|
| Transmission Distance | Up to 40m |
| Supply Voltage | 4.75 to 5.25 V |
| Peak Emission Wavelength | 650 nm |
| Current Consumption | 85 to 115 mA |
Source: Toshiba TODX270A Fiber Optic Transceiving Module Datasheet
All Toshiba TODX270 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported by the TODX270A?
The maximum data rate is DC to 6 Mb/s using NRZ code.
From: Toshiba TODX270A Fiber Optic Transceiving Module Datasheet
What is the transmission distance for the TODX270A?
The transmission distance is up to 40 meters.
From: Toshiba TODX270A Fiber Optic Transceiving Module Datasheet
What is the maximum data rate supported by the TODX270?
The maximum data rate is DC to 6 Mb/s using NRZ code.
From: Toshiba TODX270 Fiber Optic Transceiving Module Datasheet
What is the maximum transmission distance for the TODX270?
The maximum transmission distance is up to 1000 meters.
From: Toshiba TODX270 Fiber Optic Transceiving Module Datasheet
