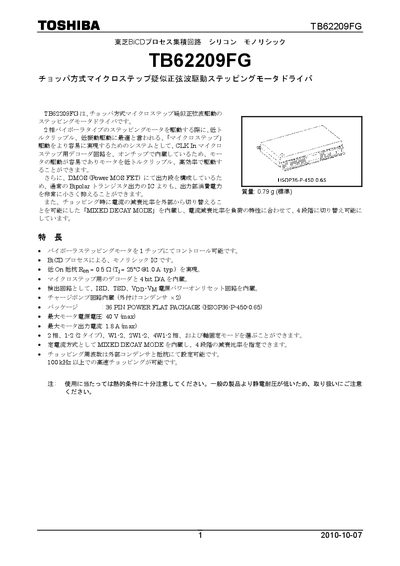

Toshiba TB62209FG Stepper Motor Driver Handbook
This handbook describes the TB62209FG chopper‑type microstep stepping‑motor driver, including its features such as on‑chip mixed‑decay mode, low on‑resistance MOSFET output stage, and integrated decoder and 4‑bit D/A. The document contains block diagrams, logic unit functions, current‑setting and feedback circuits, and pin‑assignment tables.
Additional sections cover equivalent input/output circuits, thermal and over‑current protection, handling precautions, and legal usage notes. The material is intended for designers and system integrators who need detailed electrical characteristics and connection details for implementing the driver in their products. This manual is written in Japanese.
Toshiba TB62209F specifications
| Package Type | HSOP36-P-450-0.65 |
|---|---|
| Output Voltage | 40 V max |
| Output Current | 1.8 A/phase max |
| ON-resistance (Ron) | 0.5 Q typ. |
| Chopping Frequency | 100 kHz or higher |
