Start here

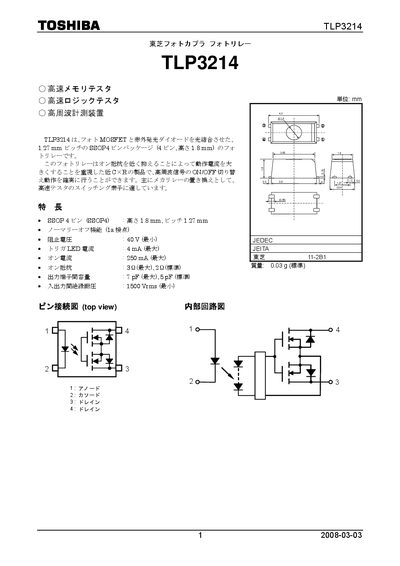

Toshiba TLP3214 Photorelay Datasheet
Datasheet 7 pages · 247 KB · JA
The TLP3214 is a high‑speed photorelay with a 1.27 mm pitch SSOP‑4 package. It offers low on‑resistance and high isolation, making it suitable for high‑frequency switching applications such as test equipment and logic testers.
The document provides absolute maximum ratings, recommended operating conditions, detailed electrical parameters, switching times, package dimensions and handling precautions for reliable integration into electronic systems. This manual is written in Japanese.
Toshiba TLP3214 specifications
| On‑voltage (minimum) | 40 V |
|---|---|
| Trigger LED current (maximum) | 4 mA |
| On‑current (maximum) | 250 mA |
| Output capacitance (maximum) | 7 pF |
| Isolation voltage (minimum) | 1500 Vrms |
| Recommended operating voltage | 32 V (max) |
All Toshiba TLP3214 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the maximum on‑current for the TLP3214?
The maximum continuous on‑current is 250 mA.
What isolation voltage does the TLP3214 provide?
It provides a minimum isolation voltage of 1500 Vrms.
