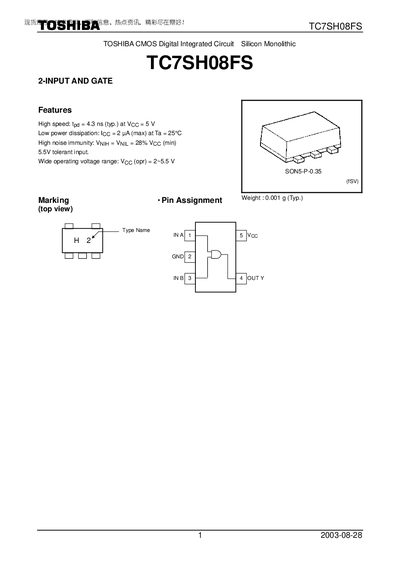

TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FS Manual(1)
The TC7SHO8FS is a 2‑input AND gate CMOS digital integrated circuit offering high speed (tpd = 4.3 ns typ. at Vcc = 5 V) and ultra‑low power dissipation (Icc = 2 pA max at 25 °C). It operates over a wide voltage range (Vcc = 2 ~ 5.5 V) and includes 5‑V tolerant inputs.
The document lists maximum ratings, detailed DC and AC electrical characteristics, package dimensions (SON5‑P‑0.35) and weight (0.001 g typ.), and outlines usage restrictions, emphasizing that the device is not intended for safety‑critical or high‑reliability applications such as medical or aerospace equipment.
Toshiba TC7SH08F specifications
| Propagation delay (tpd) | 4.3 ns typ. at Vcc = 5 V |
|---|---|
| Supply current (Icc) | 2 pA max at 25 °C |
| Operating voltage range (Vcc) | 2.0 ~ 5.5 V |
| Supply voltage range | -0.5 ~ 7.0 V |
| Power dissipation (Pp) | 50 mW |
| Package type | SON5‑P‑0.35 |
| Weight | 0.001 g typ. |
Source: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FS Manual(1)
All Toshiba TC7SH08F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FS Manual(1) 6 p
- Toshiba TC7SH08FS CMOS Digital Integrated Circuit Datasheet 6 p
- TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1) 5 p
- Toshiba TC7SH08FE Datasheet 5 p
- Toshiba TC7SH08F/FU 2-Input AND Gate Datasheet 5 p
Questions answered in these manuals
What is the typical propagation delay of the TC7SHO8FS?
The typical propagation delay is 4.3 ns at a supply voltage of 5 V.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FS Manual(1)
What supply voltage range is allowed for the device?
The device can be powered from –0.5 V to 7.0 V, with a recommended operating range of 2.0 V to 5.5 V.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FS Manual(1)
What is the typical propagation delay of the TC7SH08FS?
The typical propagation delay is 4.3 ns.
From: Toshiba TC7SH08FS CMOS Digital Integrated Circuit Datasheet
What supply voltage range does the TC7SH08FS support?
It operates from 2 V to 5.5 V.
From: Toshiba TC7SH08FS CMOS Digital Integrated Circuit Datasheet
What is the typical propagation delay of the TC7SHO8FE?
The typical propagation delay is 4.3 ns.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
What package type is used for the TC7SHO8FE?
It is packaged in a SONS‑P‑0.50 package.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
