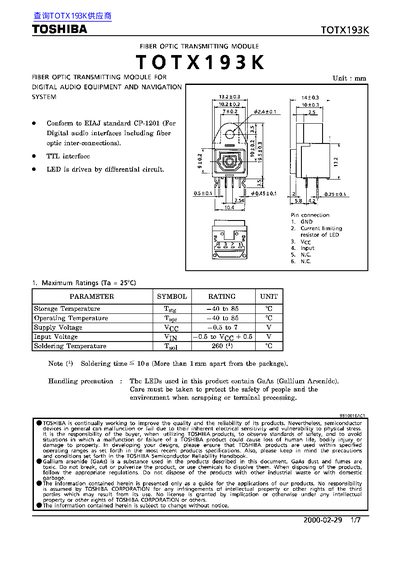

Toshiba TOTX193K Fiber Optic Transmitting Module Datasheet
The TOTX193K is a fiber‑optic transmitting module designed for digital audio equipment and navigation systems. It uses a GaAs LED source and complies with the EIAJ CP‑1201 standard for optical inter‑connections.
The document lists electrical and optical characteristics such as a 5 V supply range, 6 Mb/s data rate, 10 m transmission distance, and a peak emission wavelength of 660 nm. It also includes recommended soldering conditions, environmental limits, and safety precautions for handling the GaAs components.
Toshiba TOTX193 specifications
| Supply Voltage (typical) | 5.0 V |
|---|---|
| Data Rate | up to 6 Mb/s |
| Transmission Distance | 0.2 – 10 m |
| Fiber Output Power | -21 – -15 dBm |
| Peak Emission Wavelength | 660 nm |
| Storage Temperature | -40 to 85 °C |
| Operating Temperature | -40 to 85 °C |
| Soldering Temperature | ≤ 260 °C (≤ 10 s) |
Source: Toshiba TOTX193 Fiber Optic Transmitting Module Datasheet
