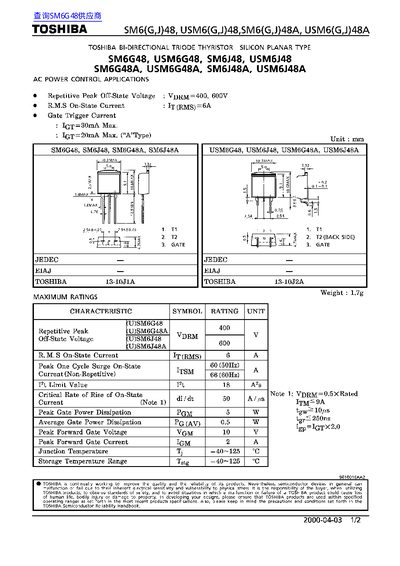

TOSHIBA SM6(G,J)48 Series Bidirectional Thyristor Datasheet
This document is a datasheet for the TOSHIBA SM6(G,J)48, USM6(G,J)48, SM6(G,J)48A, and USM6(G,J)48A series of bidirectional thyristors. These silicon planar type devices are designed specifically for AC power control applications.
Read onlineToshiba USM6(G specifications
| Repetitive Peak Off-State Voltage | 400, 600V |
|---|---|
| RMS On-State Current | 6A |
| Peak Forward Gate Voltage | 10 V |
| Junction Temperature Range | -40~125 °C |
Source: TOSHIBA SM6(G,J)48 Series Bidirectional Thyristor Datasheet
All Toshiba USM6(G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the AC power control applications for these thyristors?
The document states they are intended for AC power control applications.
From: TOSHIBA SM6(G,J)48 Series Bidirectional Thyristor Datasheet
What is the maximum gate trigger current for standard types?
The maximum gate trigger current (Igp) is 30mA Max.
From: TOSHIBA SM6(G,J)48 Series Bidirectional Thyristor Datasheet
What is the maximum repetitive off voltage for the SM6G48 series?
The maximum repetitive off voltage is specified as 400 V to 600 V.
From: TOSHIBA SM6G48 USM6G48 SM6J48 USM6J48 SM6G48A USM6G48A SM6J48A USM6J48A Manual
What is the maximum RMS on‑current rating?
The device can handle up to 6 A RMS on‑current.
From: TOSHIBA SM6G48 USM6G48 SM6J48 USM6J48 SM6G48A USM6G48A SM6J48A USM6J48A Manual
