Key facts
- Brand
- Toshiba
- Model
- TB62600F
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-07
Start here

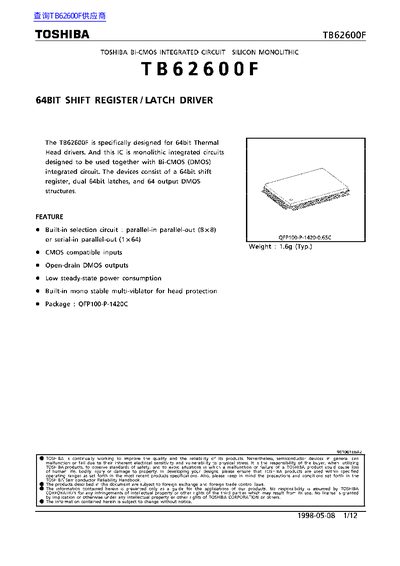

TOSHIBA TB60600F Manual
Datasheet 12 pages · 406 KB · EN
The Toshiba TB62600F is a monolithic integrated circuit specifically designed as a 64-bit shift register and latch driver. It is intended for use with Bi-CMOS (DMOS) integrated circuits to drive 64-bit thermal heads, featuring built-in selection circuits for parallel or serial input modes.
Read onlineToshiba TB62600F specifications
| Function | 64bit SHIFT REGISTER / LATCH DRIVER |
|---|---|
| Application | Thermal Head drivers |
| Package Type | QFP100-P-1420C |
| Weight | 1.6g (Typ.) |
| Operating Temperature | -40~85 °C |
Source: TOSHIBA TB60600F Manual
All Toshiba TB62600F documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the TB62600F designed for?
The device is specifically designed for 64-bit thermal head drivers.
From: TOSHIBA TB60600F Manual
What is the primary application of this IC?
It is specifically designed for use as a driver in 64-bit thermal heads.
Does this product contain lead?
No, the suffix 'G' indicates it is a Lead(Pb)-Free product.
