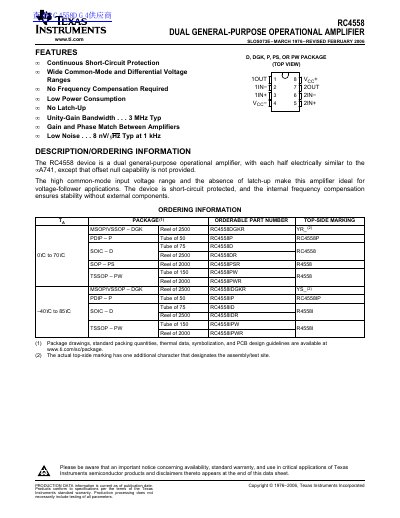

Texas Instruments RC4558 Dual Operational Amplifier Datasheet
The RC4558 is a dual general-purpose operational amplifier where each half is electrically similar to the A741, except it lacks offset null capability. Key features include continuous short-circuit protection, wide common-mode and differential voltage ranges, no requirement for external frequency compensation, low power consumption, and unity-gain bandwidth of 3 MHz typical.
The document provides absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics such as input offset voltage, bias current, slew rate, and noise. It also includes typical performance graphs and mechanical package drawings for various available packages including PDIP, SOIC, TSSOP, and MSOP.
All Texas Instruments RC4558 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is frequency compensation required for the RC4558?
No, the internal frequency compensation ensures stability without external components.
From: Texas Instruments RC4558 Dual Operational Amplifier Datasheet
Does the RC4558 have short-circuit protection?
Yes, it features continuous short-circuit protection.
From: Texas Instruments RC4558 Dual Operational Amplifier Datasheet
What is the maximum supply voltage for the RC4558?
The absolute maximum rating for the supply voltage is 18 V.
From: Texas Instruments RC4558 Dual Operational Amplifier Datasheet
What is the typical unity-gain bandwidth of this operational amplifier?
The device has a typical unity-gain bandwidth of 3 MHz.
From: Texas Instruments RC4558 Dual Operational Amplifier Datasheet
