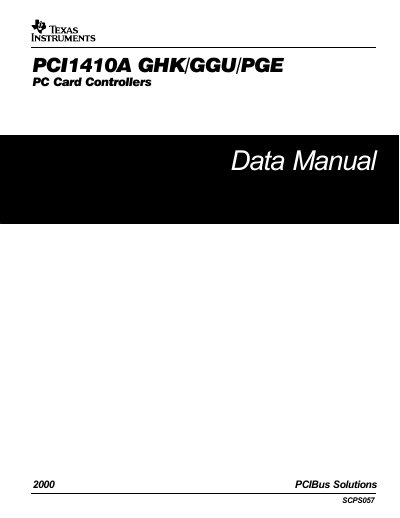

2000 PCIBus Solutions Data Manual
This data manual describes the PCI1410A device, a single‑socket CardBus bridge with integrated OHCI link. It covers the device’s functional description, terminal assignments, protocol features, power‑management options, and programming model.
Key sections include terminal descriptions, register maps, electrical characteristics (supply voltages, clamping levels), mechanical drawings for GGU, GHK, and PGE packages, and detailed protocol timing. The document serves designers needing complete reference data for implementing the PCI1410A in PCIBus solutions.
| Core supply voltage | 3.3 V |
|---|---|
| Supported PCI signaling voltages | 3.3 V or 5 V |
| GHK package type | 209‑ball MicroStar BGA |
The core supply voltage is 3.3 V.
Yes, the device can operate in a 5‑V signaling environment by connecting VCCP to 5 V.
