TDA1311A is a voltage-driven digital-to-analog converter (DAC) from Philips Semiconductors. It features small size, low power consumption, wide dynamic range, and support for multiple input formats. It is suitable for a wide range of applications.

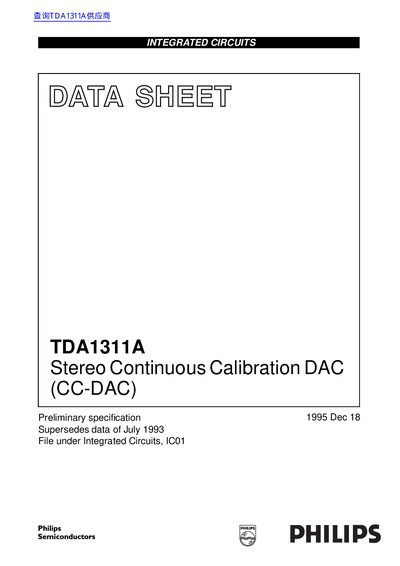

The document is a preliminary specification sheet for the Philips TDA1311A, a voltage-driven digital-to-analog converter (DAC). It introduces the Continuous Calibration (CC) concept designed to ensure high accuracy insensitive to ageing, temperature matching, and process variations. The device features an extremely low-power dissipation and small package size in SO8 or DIP8 formats.
| Supply Voltage (Vop) | 4.0 to 5.5 V |
|---|---|
| Full Scale Output Voltage (Ves) | 1.8 to 2.2 V |
| Signal-to-Noise Ratio (S/N) | 86 to 92 dB |
| Operating Temperature Range (Tamb) | -40 to +85 °C |
| Input Bit Rate (BR) | 18.4 Mbits/s |
The TDA1311A is available in SO8 or DIP8 plastic packages.
No, this document contains preliminary data and target specifications for product development.
