Key facts
- Brand
- Philips
- Model
- LFH3200
- Category
- Voice recorder
- Industry
- Electronics
- Documents
- 3
- Languages
- EN · FI
- Last added
- 2012-05-03
Start here

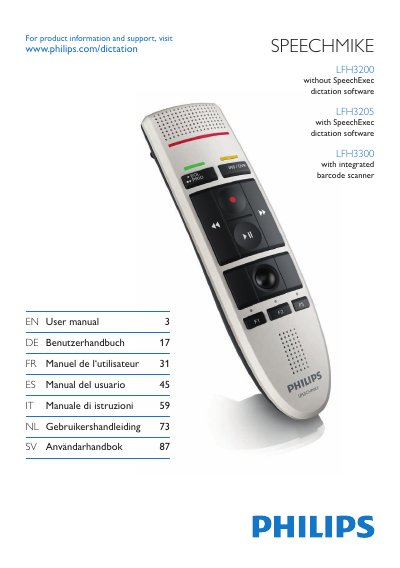

Philips SpeechMike LFH3200/LFH3205/LFH3300 User Manual
This manual introduces the SpeechMike series, lists the contents of the package, and explains how to install the device and required software on a Windows PC. It covers basic operation such as recording, playback, and using the optional barcode scanner on the LFH3300 model.
Further sections describe how to customize key functions with the Device Control Center, present technical data (dimensions, connectivity, audio performance), and answer common troubleshooting questions, including USB‑hub issues and power requirements.
Philips LFH3200 specifications
| Product dimensions (W × D × H) | 45 × 165 × 30 mm |
|---|---|
| Weight | 0.112 kg |
| Cable length | 3 m |
| Connectivity | USB: Mini‑USB 2.0 |
| Microphone type | Electret condenser |
| Microphone frequency response | 100–7500 Hz |
| Microphone sensitivity | -37 dBV |
| Speaker type | Built‑in round, dynamic |
| Speaker output power | > 200 mW |
| Signal‑to‑noise ratio | > 70 dBA |
| System requirements – Processor | Pentium III, 500 MHz (or Pentium IV 1 GHz recommended) |
All Philips LFH3200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Why does the operating system stop responding after a restart when the SpeechMike is connected?
Using certain USB hubs with the SpeechMike can cause the OS to hang; unplug the device before starting the PC and reconnect it afterwards, or connect directly to a USB port.
How many languages does the LFH9600 support?
The device supports four languages: English, French, German, and Spanish.
Does the Pocket Memo provide encryption for recorded files?
Yes, the LFH9600 series uses encryption technology to protect recordings in real time.
What barcode types does the LFH3300 scanner support?
It can read EAN, UPC, Code 11/39/93/128, Codabar, MSI, RSS, Interleaved 2 of 5 and Discrete 2 of 5 barcodes.
From: Philips SpeechMike LFH3200/LFH3205/LFH3300 User Manual
