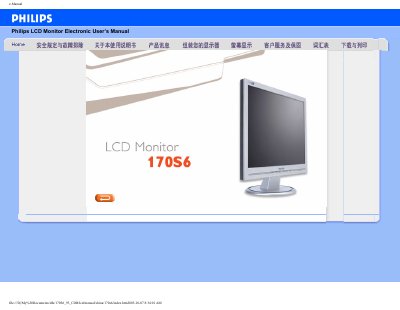

Philips 170S6 LCD Monitor User Manual
User Manual 96 pages · 1.3 MB · ES
This electronic user manual is for the Philips 170S6 LCD monitor. It describes safety precautions and maintenance, product features, technical specifications, resolution modes, automatic energy saving, physical specifications, and pin assignment.
It also explains installation, on-screen display menus, customer care and warranty information, and troubleshooting. This manual is written in Spanish.
Philips 170S6 specifications
| Screen size | 17 inch / 43.2 cm viewable |
|---|---|
| Pixel pitch | 0.264 x 0.264 mm |
| Display resolution | 1280 x 1024 pixels |
| Display colors | 16.2 million colors |
| Vertical refresh rate | 56-76 Hz |
| Horizontal frequency | 30-83 kHz |
| Video dot rate | 140 MHz |
| Video input impedance | Video 75 Ohm; Sync 2.2 kOhm |
| Input signal level | 700 mVpp |
| Contrast ratio | 500:1 (typical) |
| Brightness | 250 cd/m2 (typical) |
| Viewing angle | Upper >60°, lower/left/right >80° (C/R >5) |
| Response time | <12 ms (typical) |
| Maximum resolution | 1280 x 1024 at 75 Hz |
| Recommended resolution | 1280 x 1024 at 60 Hz |
| User-definable modes | 50 |
| Factory preset modes | 15 |
| Active mode power | <30 W |
| Automatic shutoff power | <1 W |
| Dimensions (W x H x D) | 375 x 390 x 200 mm (including pedestal) |
| Weight | 4.2 kg |
| Power source | 100-240 VAC, 50/60 Hz |
| Power consumption | 30 W (typical) |
| Operating temperature | 5°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 20% to 80% |
| System MTBF | 50,000 h (including CCFL 40,000 h) |
All Philips 170S6 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What resolution is recommended for the Philips 170S6?
The recommended resolution is 1280 x 1024 at 60 Hz.
How much power does the monitor use in active mode?
In active mode it uses less than 30 W.
When was this manual published?
The manual is dated 2005‑10‑07.
