Key facts
- Brand
- Philips
- Model
- DVP3040K
- Category
- Other Electronics
- Documents
- 2
- Languages
- JA · ZH
- Last added
- 2012-03-27
Start here

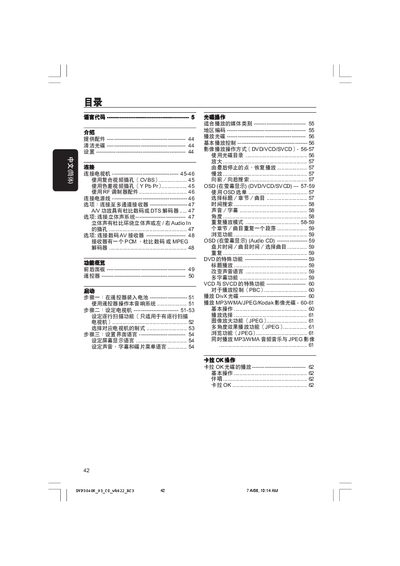

Philips DVP3040K DVD Player User Manual
User Manual 36 pages · 1.8 MB · ZH
This manual guides users through unpacking, cleaning discs, and initial setup of the Philips DVP3040K DVD player. It details how to connect the unit to a TV via composite, component, or RF connections and explains audio‑video settings, remote‑control operation, and menu navigation.
A comprehensive troubleshooting section helps diagnose common issues such as no power, picture problems, or audio errors, and includes safety warnings and service‑support contact information. This manual is written in Chinese.
Philips DVP3040K specifications
| Video format | PAL/50Hz, NTSC/60Hz |
|---|---|
| Video DAC | 12‑bit, 108 MHz |
| Y Pb Pr output voltage | 0.7 Vpp into 75 Ω |
| Video output voltage | 1 Vpp into 75 Ω |
| Horizontal resolution (PAL) | 720 pixels |
| Vertical resolution (PAL) | 576 lines |
| Audio formats | MPEG/AC‑3, Dolby Digital, PCM 16/20/24‑bit |
| Audio sample rates | 44.1 kHz, 48 kHz, 96 kHz |
| Power supply | 110‑240 V, 50/60 Hz |
| Power consumption (operating) | 10 W |
| Power consumption (standby) | < 0.8 W |
| Dimensions (W × H × D) | 360 mm × 37 mm × 235 mm |
| Weight | ≈ 2.0 kg |
All Philips DVP3040K documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the DVD player if it stops responding?
Unplug the power cord, wait 5–10 seconds, then plug it back in to fully reset the unit.
