Key facts
- Brand
- Philips
- Model
- SDP-1720
- Industry
- Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-03-16
Start here

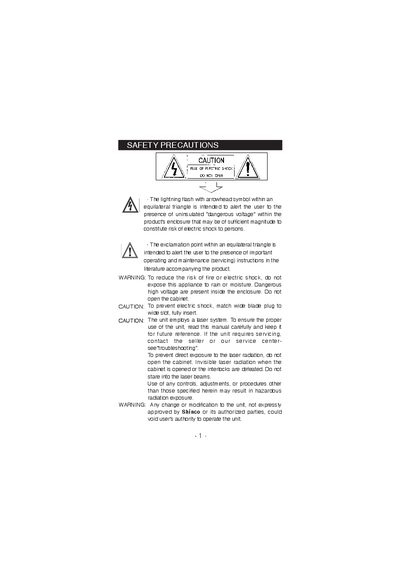

Shinco SDP-1720 DVD Video Player User Manual
This manual covers essential safety precautions, including warnings about electric shock, laser radiation, and proper handling of the power adapters and battery pack. It also details the unit’s features, part names, connections, and step‑by‑step basic operations such as loading discs, adjusting picture settings, and using MP3 playback.
Additional sections explain function settings, various playback modes, troubleshooting tips, and the technical specifications of the player. The battery pack usage, charging procedure, and runtime information are provided to help users achieve optimal performance and longevity.
Philips SDP-1720 specifications
| Laser wavelength | 650 nm |
|---|---|
| Video system | NTSC/PAL/MULTI |
| Frequency response | 20 Hz–20 kHz 11 dB |
| Signal‑to‑noise ratio | 95 dB |
| Channel separation | 385 dB |
| Dynamic range | 85 dB |
| Analog audio output level | 2 V ±10 % |
| Analog audio load impedance | 10 kΩ |
| Digital audio output level | 1.6 V p‑p |
| Video output impedance | 75 Ω |
| Power supply | DC 9 V |
| Operating temperature | 5 °C to 35 °C |
| Power consumption | ≤20 W |
| Dimensions | 190 mm × 140 mm × 25 mm |
| Weight | 720 g |
All Philips SDP-1720 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long does the battery pack last when playing a DVD with the TFT screen on?
Approximately 3 hours of continuous playback.
How long does the battery pack last when playing a DVD with the TFT screen off?
Approximately 5 hours of continuous playback.
How long does the battery pack last during playback?
With the TFT display on, continuous playback is about 3 hours; with the TFT off, about 5 hours.
How do I attach the battery pack to the player?
Turn the player off, turn it upside down, insert the battery pack's catches into the corresponding holes, and slide it until it is firmly attached.
