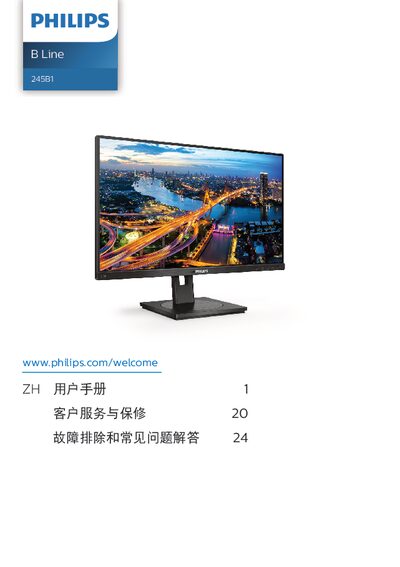

Philips 245B1 Monitor User Manual
This manual covers important safety measures, installation steps, and operation of the Philips 245B1 monitor. It includes detailed instructions for mounting, connecting cables, adjusting OSD settings, and using features such as SmartImage, Adaptive Sync and PowerSensor.
The document also contains technical specifications, power‑saving information, environmental disposal guidance, warranty details and a comprehensive troubleshooting and FAQ section to help resolve common issues. This manual is written in Chinese.
Philips 245B1 specifications
| Panel type | IPS |
|---|---|
| Backlight | W‑LED |
| Panel size | 23.8" (60.5 cm) |
| Aspect ratio | 16:9 |
| Resolution (native) | 2560 × 1440 @ 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle | 178° H / 178° V |
| Low blue mode | Yes |
| Typical power consumption | 22.8 W |
| Dimensions (with stand) | 540 × 501 × 205 mm |
| Weight (with stand) | 4.78 kg |
All Philips 245B1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
