The 74ABT16245B/74ABTH16245B is a 16-bit dual bus transceiver produced by Philips Semiconductors. It has 3-state buffer output, low switch noise and low power consumption.

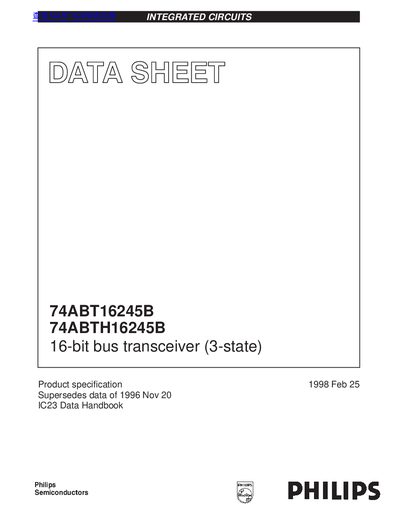

This document is a product specification datasheet for the Philips 74ABT16245B and 74ABTH16245B, which are high-performance BiCMOS 16-bit bus transceivers. These devices feature non-inverting 3-State bus compatible outputs in both send and receive directions, designed to minimize external timing requirements.
| Data Bus Width | 16-bit |
|---|---|
| Output Capability | +64 mA/-32mA |
| Operating Temperature Range | -40°C to +85°C |
| Propagation Delay (Typical) | 2.0 ns |
The 74ABTH16245B incorporates bus hold data inputs which eliminate the need for external pull-up resistors, whereas the 74ABT16245B does not have this feature.
Yes, live insertion and extraction are permitted for this device.
