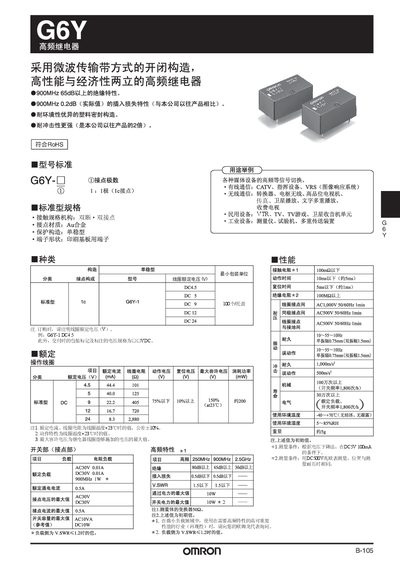

Omron G6Y High-frequency Relay User Manual
This manual describes the performance characteristics of the Omron G6Y high‑frequency relay, including insertion loss, isolation, contact material and rated voltage. It also lists the electrical ratings such as contact current, voltage and operating temperature range.
Installation, mounting and handling guidelines are provided, covering PCB terminal design, cleaning procedures, packaging details and safety precautions for reliable operation in various applications. This manual is written in Japanese.
Omron G6Y specifications
| Rated Voltage (DC) | 4.5 V |
|---|---|
| Insertion Loss at 900 MHz | 0.2 dB |
| Isolation at 900 MHz | ≥65 dB |
| Contact Material | Gold alloy |
| Operating Temperature Range | -40 °C to +70 °C |
| Maximum Contact Voltage | AC 300 V |
| Maximum Contact Power | 10 W |
All Omron G6Y documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the maximum operating frequency of the G6Y relay?
The relay can handle signals up to 900 MHz.
How should the relay be cleaned after use?
Clean with an alcohol‑based cleaning agent while keeping the water temperature below 40 °C.
What is the rated voltage for the G6Y‑1 relay?
The G6Y‑1 relay is rated for 4.5 V DC.
What is the insertion loss of the G6Y relay at 900 MHz?
The insertion loss at 900 MHz is 0.2 dB.
