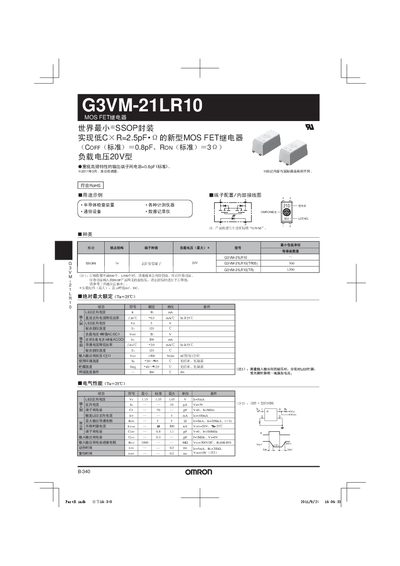

Omron G3VM-21LR10 MOS FET Relay Manual
The G3VM-21LR10 is a MOS FET relay offered in a very small SSOP package with a low inter‑terminal capacitance of 0.8 pF (standard). It is designed for high‑frequency applications and includes detailed electrical characteristics such as load voltage and current limits.
The manual lists recommended operating conditions, including a maximum load voltage of 20 V (peak AC/DC), a continuous load current of 200 mA, and an operating temperature range of 20 °C to 85 °C. Users are directed to the common notes section for additional handling and mounting guidance. This manual is written in Chinese.
Omron G3VM-21LR specifications
| Package type | SSOP4 |
|---|---|
| Maximum load voltage (peak AC/DC) | 20 V |
| Maximum load current | 0.9 A |
| LED forward current | 50 mA |
| LED forward voltage | 1.0‑1.15 V |
| Operating temperature range | -20 °C to +85 °C |
| Actuation time | 1‑2 ms |
| Release time | 1 ms |
