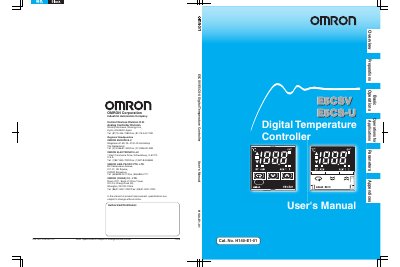

OMRON E5CSV/E5CS-U User Manual
This manual describes the features, specifications, and safe use of OMRON's E5CSV and E5CS‑U Compact Digital Temperature Controllers. It covers input options, display characteristics, wiring, mounting, and troubleshooting procedures.
Safety precautions, warranty terms, and detailed wiring and terminal‑screw guidelines are included to help qualified operators install and maintain the controllers correctly.
Omron E5CSV specifications
| Supported input types | Thermocouple, platinum resistance thermometer, thermistor |
|---|---|
| Measurement precision | 1 % FS (E5CSV 40.5 % FS) |
| Display character height | 13.5 mm |
| Waterproof rating | IP66 (E5CSV only) |
| Terminal screw torque | ESCSV: 0.74‑0.90 N·m, ESCS‑U: 0.5 N·m |
Source: OMRON E5CSV/E5CS-U User Manual
All Omron E5CSV documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What sensor types can be used with the E5CSV/E5CS‑U controllers?
The controllers accept thermocouple, platinum resistance thermometer, or thermistor inputs.
How long does it take for the temperature display to become accurate after power‑on?
Approximately 30 minutes are required for the correct temperature to be displayed after turning the power supply on.
What is the supply voltage range for the E5CSV controller?
The controller operates from 100 to 240 VAC at 50/60 Hz, and a 24 VAC/VDC option is also available.
How many alarm outputs can the E5CSV have?
Models can have 0, 1, or 2 alarm outputs; two‑alarm models always use the upper‑limit alarm mode for alarm 2.
