Key facts
- Brand
- Omron
- Model
- C200H-NC112
- Category
- Automation control Equipment
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-07
Start here

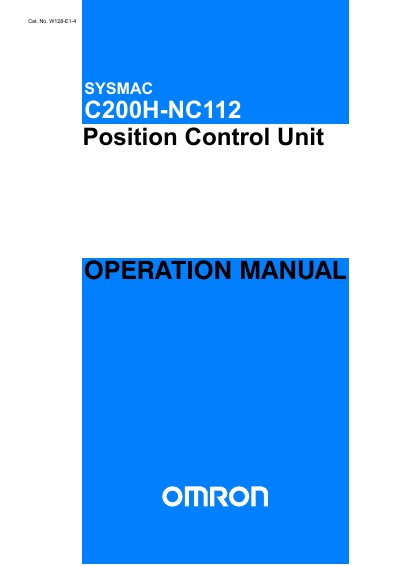

OMRON SYSMAC C200H-NC112 Position Control Unit Operation Manual
This manual describes the C200H‑NC112 Position Control Unit, a Special I/O Unit for C200H programmable controllers. It explains the unit’s features, components, basic operating principles, and the positioning system concepts needed for proper use.
The document covers pre‑operation steps such as switch settings and wiring, detailed operation flow, command reference, programming examples, error and alarm handling, and includes appendices with specifications, standard models, and an index.
Omron C200H-NC112 specifications
| Power supply voltage | 12–24 VDC |
|---|---|
| Input resistance | 1 kΩ |
| Number of axes | 1 axis |
Source: OMRON SYSMAC C200H-NC112 Position Control Unit Operation Manual
All Omron C200H-NC112 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Where can I find the alarm code list?
The alarm code list is provided in the Appendices under "Alarm Code List".
From: Omron C200H-NC112 Position Control Unit Operation Manual
