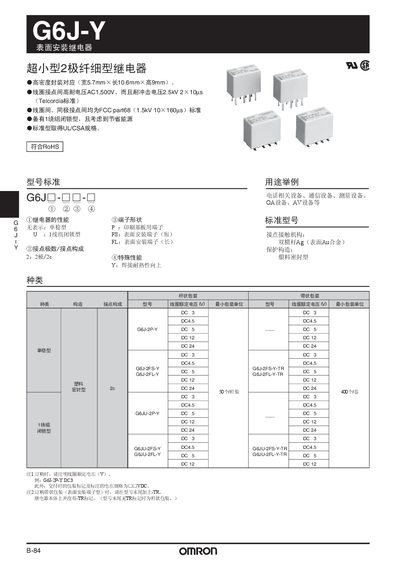

OMRON G6KJ-Y Surface installation relay Manual
The Omron G6J-Y is a compact surface‑mount relay designed for high‑density PCB applications. This manual provides the rated electrical values, contact characteristics, mechanical dimensions, and packaging details required for proper selection and use.
Key sections include rated voltage and current, contact resistance, durability specifications, recommended mounting procedures, and storage guidelines. Compliance with UL, CSA and RoHS standards is also documented. This manual is written in Japanese.
Omron G6J-Y specifications
| Maximum switching time | ≤ 3 ms (typical 1.6 ms) |
|---|---|
| Weight | 1.0 g |
| Operating temperature range | -40 °C to +85 °C |
| Storage humidity range | 5 % to 95 % RH |
| Packaging – tape & reel | 800 parts per reel (2 rolls) |
Source: Omron G6J-Y Relay Handbook
All Omron G6J-Y documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What packaging options are available for the G6J‑Y series?
They are supplied in tape‑and‑reel format with 800 parts per reel (2 rolls).
What are the recommended storage conditions?
Store the relay at normal temperature and humidity, avoiding moisture and extreme temperatures.
What is the recommended soldering temperature for the G6J-Y?
Use a soldering temperature of about 250 °C (260 °C for DWS processes).
How can I order the tape‑packaged version of the G6J-Y relay?
Add the suffix “‑TR” to the part number when ordering to request tape packaging.
