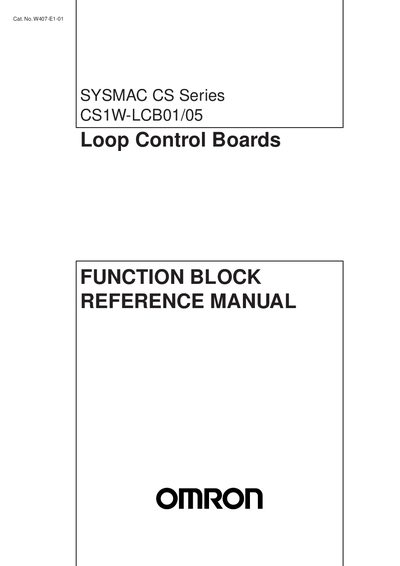

Omron CS1W-LCB01/05 Loop Control Boards Function Block Reference Manual
This manual provides detailed information on the CS1W-LCB01/05 Loop Control Boards, including function block descriptions, installation steps, and operating guidelines. It is intended for engineers and technicians responsible for installing, designing, and managing factory automation (FA) systems that use Omron PLCs.
The document includes safety precautions, environmental requirements, and troubleshooting guidance to ensure reliable and safe operation of the Loop Control Boards in industrial settings.
Omron CS1W-LCB01 specifications
| Current consumption | 220 mA at 5 V DC (plus 150 mA with NT‑AL001‑E Link Adapter) |
|---|---|
| External dimensions | 34.5 W × 130 H × 100.5 D mm |
| Weight | 100 g max. |
| LED indicators | 3 LEDs: RUN, ready, and communications port send/receive |
| Super‑capacitor backup life | 24 hours at 25 °C |
| Influence on CPU unit cycle time | 0.3 to 0.8 ms |
Source: Omron SYSMAC CS Series CS1W-LCB01 and CS1W-LCB05 Loop Control Boards Operation Manual
All Omron CS1W-LCB01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who is the intended audience for this manual?
The manual is intended for personnel in charge of installing, designing, and managing FA systems who have knowledge of electrical systems and instrumentation.
From: Omron CS1W-LCB01/05 Loop Control Boards Function Block Reference Manual
What is the current consumption of the Loop Control Board?
The board draws 220 mA at 5 V DC, increasing by 150 mA when an NT‑AL001‑E Link Adapter is used.
From: Omron SYSMAC CS Series CS1W-LCB01 and CS1W-LCB05 Loop Control Boards Operation Manual
How does data exchange between the Loop Control Board and the CPU unit occur?
Data is exchanged via words in the Auxiliary Area of the CPU unit, covering operation status, error inputs, start commands, and function‑block data.
From: Omron SYSMAC CS Series CS1W-LCB01 and CS1W-LCB05 Loop Control Boards Operation Manual
