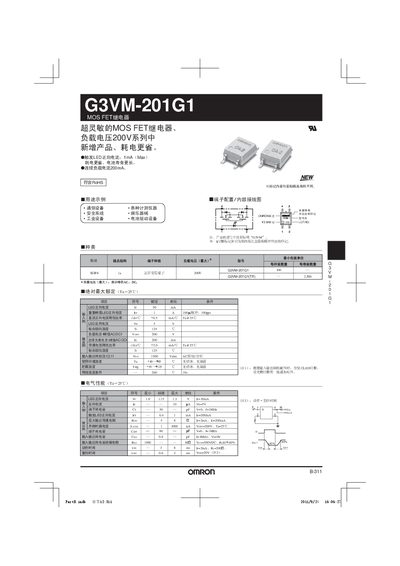

Omron G3VM-201G1 MOS FET Relay Datasheet
The G3VM-201G1 is a MOS FET relay from Omron designed for low‑power applications. It features a highly sensitive trigger LED and a compact surface‑mount package, making it suitable for communication equipment, safety systems, and battery‑driven devices.
Key electrical characteristics include a maximum load voltage of 200 V, a continuous load current of 200 mA, and a trigger LED forward current of 1 mA (max). The document also lists recommended operating conditions such as load voltage up to 160 V peak AC, LED forward current up to 25 mA, and ambient temperature limits. This manual is written in Chinese.
Omron G3VM-201G specifications
| Continuous Load Current (peak AC/DC) | 200 mA |
|---|---|
| Trigger LED Forward Current (max) | 1 mA |
| LED Forward Voltage | 0.05 V |
All Omron G3VM-201G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous load current?
The maximum continuous load current is 200 mA.
What is the recommended trigger LED forward current?
The trigger LED should be driven with a forward current of up to 1 mA.
What is the maximum load voltage for the G3VM-201G relay?
The relay can handle a peak load voltage of 200 V for both AC and DC.
What isolation voltage is provided between the input and output terminals?
The isolation voltage between input and output is rated at 1500 Vrms.
