Start here

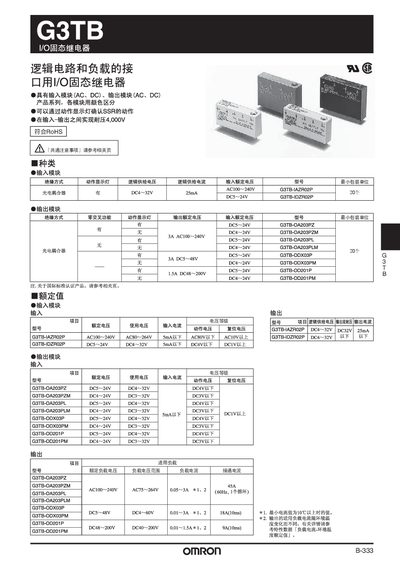

Omron G3TB Solid State Relay Manual
This manual provides the essential information for using Omron's G3TB series solid‑state relays. It includes safety precautions, electrical characteristics, and detailed wiring diagrams for both AC and DC applications.
The document also lists the physical dimensions, terminal layout, storage and operating temperature ranges, and surge current ratings, helping installers and technicians select the correct model and ensure reliable operation. This manual is written in Japanese.
Omron G3TB specifications
| Rated AC Voltage | 100‑240 V |
|---|---|
| Rated DC Voltage | 4‑32 V |
| Weight | 22 g |
| Storage Temperature Range | -30 °C to +100 °C |
| Operating Temperature Range | -30 °C to +80 °C |
Source: Omron G3TB Service Manual
All Omron G3TB documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What AC voltage range are the G3TB relays rated for?
The G3TB relays are rated for AC100‑240 V.
What is the maximum operating temperature for the G3TB series?
The relays can operate from –30 °C up to +80 °C.
What is the rated AC input voltage for the G3TB series?
The G3TB series is rated for 100 V to 240 V AC input.
What is the rated DC input voltage range?
The relays accept a DC input voltage from 4 V to 32 V.
