G6Y miniature relay is a RoHS compliant miniature relay that features high repeatability, high frequency characteristics and low power consumption.

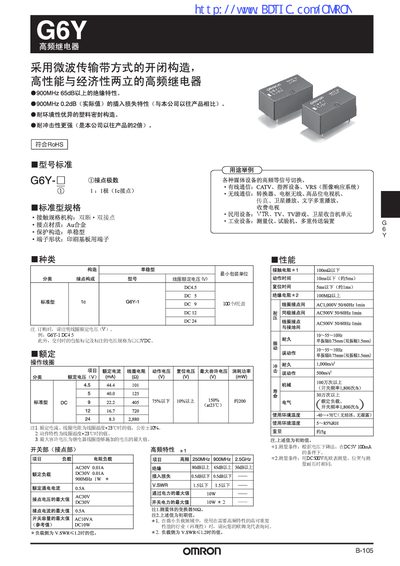

The Omron G6Y relay service manual provides detailed electrical and mechanical specifications, including rated voltages, contact resistance, and high‑frequency performance up to 900 MHz. It also describes recommended handling, cleaning, and packaging procedures to ensure reliable operation.
Additional sections cover testing methods, mounting guidelines, and safety precautions for use in CATV, VTR, and other high‑frequency signal applications. This manual is written in Japanese.
| Maximum Switching Frequency | 900 MHz |
|---|
The relay can handle signals up to 900 MHz.
Clean with an alcohol‑based cleaning agent while keeping the water temperature below 40 °C.
