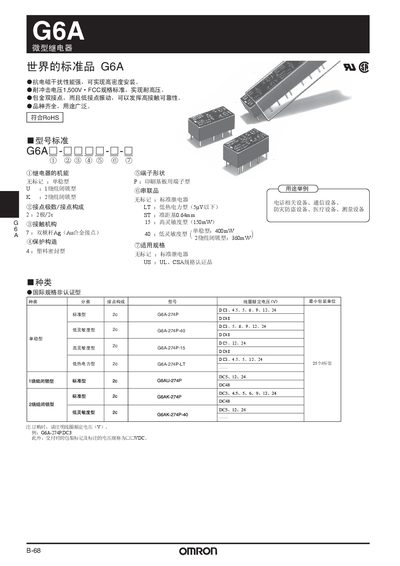

Omron G6A Relay Service Manual
This manual provides detailed technical data for Omron G6A series micro relays, including electrical and mechanical characteristics, contact ratings, dimensions, and certification information. It also contains instructions for proper installation, testing procedures, and safety precautions.
The document is organized into sections on specifications, coil voltage options, contact materials, environmental limits, test results, and handling guidelines, helping engineers and technicians select the correct relay variant and maintain reliable operation. This manual is written in Chinese.
Omron G6A specifications
| Contact rating (DC) | 0.3 A at 125 V DC |
|---|---|
| Maximum contact voltage | AC250 V / DC220 V |
| Contact material | Silver‑gold alloy (Ag+Au) |
| Weight | ≈3.5 g |
| Operating temperature range | -40 °C to +70 °C |
| Maximum switching frequency | 36 000 times/s |
Source: Omron G6A Relay Service Manual
All Omron G6A documents by type
Disassembly, diagnostics and part numbers, for repair.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What material are the contacts made of?
The contacts are made from a silver‑gold alloy (Ag+Au).
What is the maximum voltage the contacts can handle?
The contacts can withstand up to 250 V AC or 220 V DC.
Which safety certifications does the G6A series have?
Certain G6A models are certified to UL and CSA standards.
What is the recommended operating temperature range for the G6A relay?
The relay is specified for use from –40 °C to +70 °C.
