Omron HEM-6111 Manuals

Key facts

Brand: Omron
Model: HEM-6111
Category: Home medical equipment
Industry: Health
Documents: 2
Languages: ZH
Last added: 2012-04-12

Start here

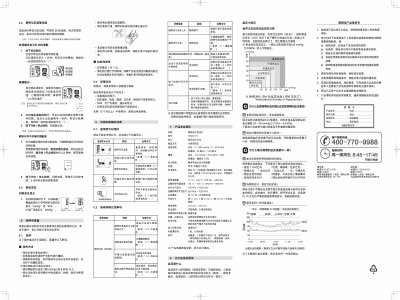

Omron HEM-6111 Intelligent Sphygmomanometer User Manual

User Manual 2 pages · 1.5 MB · ZH

This manual explains how to operate the Omron HEM-6111 intelligent electronic sphygmomanometer, including cuff placement, measurement procedure, and how to read and store results. It also covers changing settings such as unit display and provides detailed safety warnings.

Additional sections describe routine maintenance, battery replacement, error handling, and warranty information, helping users keep the device reliable and accurate over its service life. This manual is written in Chinese.

Read online

Omron HEM-6111 specifications

Model	HEM-6111
Display	Digital
Measurement method	Oscillometric
Blood pressure range	0 ~ 299 mmHg (0 ~ 39.9 kPa)
Pulse range	40 ~ 180 bpm
Pressure accuracy	±3 mmHg (±0.04 kPa)
Pulse accuracy	±5%
Pressure sensor	Capacitive pressure sensor
Power source	Two 7‑A alkaline dry cells
Battery life	≈300 measurements per 2 batteries (23 °C, 2×/day, 170 mmHg)
Operating temperature / humidity	+5 °C to +40 °C, 15 %–85 % RH
Storage temperature / humidity	-20 °C to +60 °C, 10 %–95 % RH
Weight	≈117 g (without batteries)
Dimensions	71 mm × 41 mm × 70 mm (without cuff)

Source: Omron HEM-6111 Intelligent Sphygmomanometer User Manual

All Omron HEM-6111 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

How can I delete all stored measurements?

Press the readout button, then hold the start/stop button for about 2‑3 seconds; this deletes all stored readings.

From: Omron HEM-6111 Intelligent Sphygmomanometer User Manual

How do I change the unit display between mmHg and kPa?

With the device powered off, long‑press the start/stop button for about 5 seconds to toggle the unit.
