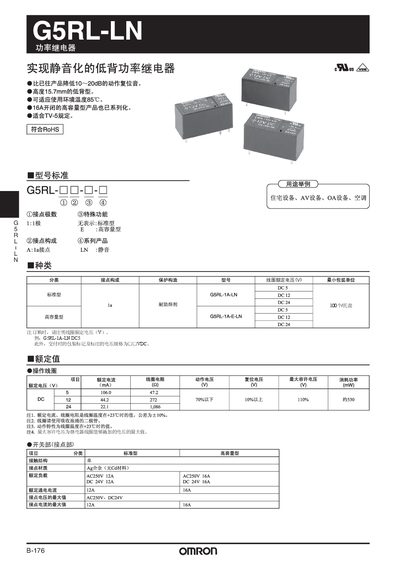

Omron G5RL-LN Power Relay Manual
This manual describes the technical data, performance characteristics, and installation guidelines for Omron's G5RL‑LN series power relays. It includes electrical ratings, contact specifications, coil parameters, environmental limits, and certification details.
The document also offers practical notes on wiring, surge‑absorbing diode usage, and safety precautions for various application environments, ensuring reliable operation in industrial and commercial settings. This manual is written in Chinese.
Omron G5RL-LN specifications
| Operation time | ≤15 ms |
|---|---|
| Contact resistance | ≤100 mΩ |
| Standard type contact rating (AC) | 12 A @ 250 V |
| Weight | ≈10 g |
| Operating temperature range | -40 °C ~ 85 °C |
| Operating humidity range | 5 % ~ 85 % RH |
All Omron G5RL-LN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What are the contact ratings for the standard type?
The standard type is rated for 12 A at 250 V AC (resistive) and 12 A at 24 V DC.
What temperature range can the relay operate in?
It can be used from –40 °C up to +85 °C.
What temperature range can the relay operate in?
It can be used from –40 °C up to 85 °C.
How many electrical switching cycles is the relay rated for?
The relay is rated for at least 100 000 electrical cycles.
