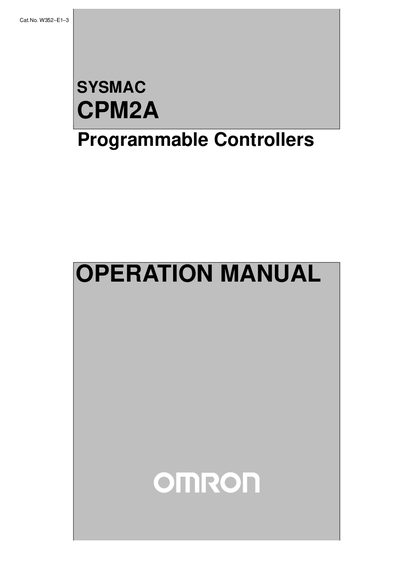

Omron CPM2A Programmable Controller Operation Manual
This operation manual is intended for engineers and technicians who install, design, or manage factory‑automation (FA) systems using the Omron CPM2A controller. It explains system configurations, safety precautions, and the controller's special features.
The document covers unit specifications, installation and wiring procedures, programming software support, test‑run and diagnostic steps, as well as the optional Expansion Memory Unit and appendices with model tables and dimensions.
Omron CPM2A specifications
| Supply voltage (AC) | 100‑240 VAC, 50/60 Hz |
|---|---|
| Supply voltage (DC) | 24 VDC |
| Power consumption (AC) | 60 VA max |
| Power consumption (DC) | 20 W max |
| Inrush current (AC) | 60 A max |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -20 °C to 75 °C |
| Maximum I/O points | 120 points |
| Maximum expansion modules | 3 modules |
All Omron CPM2A documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does the Z\DANGER symbol indicate?
It indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
What does the abbreviation PC stand for in this manual?
PC means Programmable Controller.
How many I/O points can the CPM2A be expanded to?
The CPM2A can be expanded up to 120 I/O points using optional expansion modules.
How many expansion I/O modules can be connected at once?
Up to three expansion I/O modules can be connected to a CPM2A CPU.
Who should read the CPM2A Operation Manual?
It is intended for personnel in charge of installing, designing, or managing FA systems who have electrical engineering knowledge.
How many I/O points does the CPM2A support?
The CPM2A supports from 10 to 120 I/O points per programmable controller.
