Start here

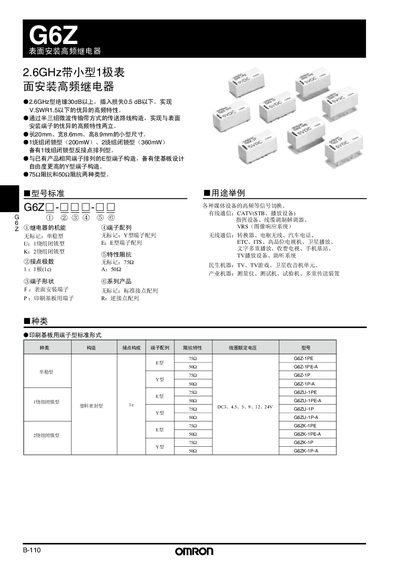

Omron G6Z Surface-Mount High-Frequency Relay Manual
The document provides detailed information on the G6Z series surface‑mount high‑frequency relays, including model variants, electrical characteristics, and recommended applications such as wired and wireless communications, consumer and industrial machines.
It also describes mechanical dimensions, packaging options, soldering recommendations, and environmental limits, helping designers integrate the relays into printed circuit boards and ensure reliable operation. This manual is written in Chinese.
Omron G6Z specifications
| Physical size | 20 mm × 8.6 mm × 8.9 mm |
|---|---|
| Maximum operating frequency | 2.6 GHz |
| VSWR (2.6 GHz version) | < 1.5 |
| Contact resistance | < 100 mΩ |
| Mechanical life | > 1 000 000 cycles |
| Electrical life (AC 30 V 10 mA) | > 300 000 cycles |
| Rod packaging quantity | 25 relays per rod |
| Tape packaging quantity | 300 relays per roll |
Source: Omron G6Z Relay Service Manual
All Omron G6Z documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum allowable contact voltage?
The maximum contact voltage is AC 30 V or DC 30 V.
From: Omron G6Z Surface-Mount High-Frequency Relay Installation Guide
What is the maximum operating frequency of the G6Z relays?
The relays operate up to 2.6 GHz.
What are the insertion loss specifications?
Insertion loss is less than 0.5 dB.
What is the maximum contact current for the G6Z relay?
The relay is rated for a maximum contact current of 0.5 A.
How many relays are placed on a tape for the G6Z series?
A tape can hold up to 300 relays.
