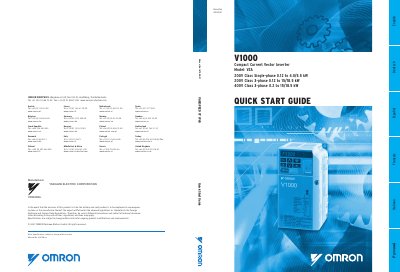

omron V1000 Compact Current Vector Inverter Model: VZA 200V Class Single-phase 0.12 to 4.0/5.5 kW 200V Class 3-phase 0.12 to 15/18.5 kW 400V Class 3-phase 0.2 to 15/18.5 kW QUICK START GUIDE
The guide begins with safety instructions and general warnings, emphasizing that only qualified personnel should install, service, or modify the V1000 drive. It details electrical safety precautions such as discharging capacitors, grounding the motor side, and using proper wiring practices.
Subsequent sections cover mechanical installation, electrical wiring, keypad operation, start‑up procedures, parameter settings, and a comprehensive troubleshooting chapter. The document also includes dimensions, weight data for various model variants, and compliance information for CE Low Voltage Directive and UL standards.
Omron V1000 specifications
| Power rating (single‑phase 200 V) | 0.12 to 4.0/5.5 kW |
|---|---|
| Power rating (3‑phase 200 V) | 0.12 to 15/18.5 kW |
| Power rating (3‑phase 400 V) | 0.2 to 15/18.5 kW |
| Operating temperature (NEMA Type 1) | -10 °C to +40 °C |
All Omron V1000 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the ambient temperature limits for the V1000?
The drive can operate in ambient temperatures from –10 °C to +40 °C for indoor (NEMA Type 1) installations and –10 °C to +50 °C for open‑chassis installations.
What power ratings are available for the V1000 inverter?
The V1000 is offered in 200 V single‑phase (0.12‑4.0/5.5 kW), 200 V three‑phase (0.12‑15/18.5 kW), and 400 V three‑phase (0.2‑15/18.5 kW) versions.
What is the power range of the V1000?
The V1000 can deliver power from 100 W up to 15 kW.
How long is the maintenance‑free operation period?
The inverter is designed for 10 years of maintenance‑free operation.
