Key facts
- Brand
- Omron
- Model
- E3ZM
- Category
- Automation control Equipment
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-01-21
Start here

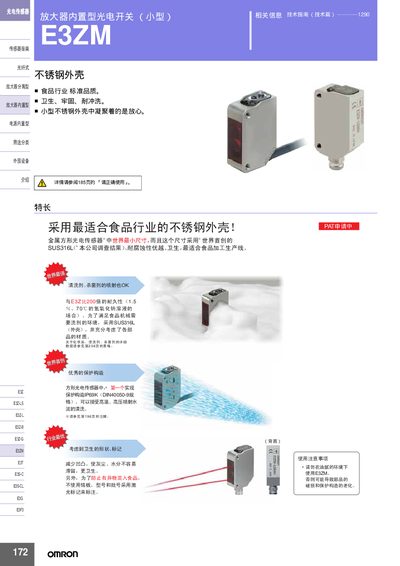

Omron E3ZM Amplifier Built-in Photoelectric Switch User Manual
This manual describes the E3ZM series photoelectric switch with an integrated amplifier, focusing on its stainless‑steel housing, IP69K protection, and suitability for food‑processing environments. It includes detailed guidance on sensor adjustment, wiring options, and recommended cleaning agents.
Technical data such as power supply range, temperature limits, and detection distances are listed, along with installation accessories and optional reflectors. The document also outlines protection features and compliance with RoHS and European standards. This manual is written in Chinese.
Omron E3ZM specifications
| Power supply voltage | DC10~30V |
|---|---|
| Operating temperature range | -25 °C to +55 °C |
| Housing material | SUS316L stainless steel |
| Maximum detection distance | 15 m |
| Current consumption | ≤ 25 mA |
Source: Omron E3ZM Amplifier Built-in Photoelectric Switch User Manual
All Omron E3ZM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the sensor include a reflector?
No, the sensor does not come with a reflector; a separate reflector must be purchased.
From: Omron E3ZM Amplifier Built-in Photoelectric Switch User Manual
Can the sensor be cleaned with 70% sodium hydroxide solution?
Yes, the sensor is compatible with 70% sodium hydroxide cleaning solutions.
From: Omron E3ZM Amplifier Built-in Photoelectric Switch User Manual
What power supply voltage should be used?
The recommended power supply voltage is between DC10 V and DC30 V.
Which material is used for the sensor housing?
The housing is made of stainless steel SUS316L, offering excellent corrosion resistance.
