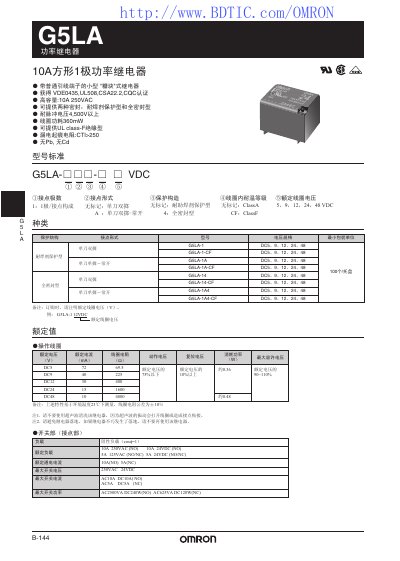

Omron G5LA Relay Service Manual
This service manual covers the technical data, safety standards, and handling instructions for Omron's G5LA series relays. It includes performance figures, contact ratings, and mechanical dimensions needed for installation and service.
Key specifications such as rated current, voltage options, power consumption, and operating temperature ranges are listed, along with compliance to UL508, CSA22.2, and VDE safety standards. The document also provides guidance on cleaning, durability, and typical applications of the relays. This manual is written in Japanese.
Omron G5LA specifications
| Rated current | 10 A |
|---|---|
| Rated voltage (DC options) | 5 V, 9 V, 12 V, 24 V, 48 V |
| Contact resistance (CTI) | > 250 Ω·cm² |
| Insulation voltage | ≥ 4500 V |
| Maximum power rating | 2200 VA |
| Safety standards | UL508, CSA22.2, VDE9435 |
Source: Omron G5LA Relay Service Manual
All Omron G5LA documents by type
Disassembly, diagnostics and part numbers, for repair.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated current of the G5LA relay?
The G5LA relay is rated for 10 A at 250 VAC.
Which safety standards does the G5LA relay meet?
It complies with UL508, CSA22.2, and VDE9435 standards.
What is the rated current and voltage of the G5LA relay?
The G5LA relay is rated for 10 A at 250 VAC.
How much power does the G5LA relay consume?
The relay consumes 360 mW of power.
