OMRON CS1W-ETN01 (10Base-5) CS1W-ETN11 (10Base-T) CJ1W-ETN11 (10Base-T) Manual
This manual describes the installation, configuration and operation of the SYSMAC CS‑series CS1W‑ETN01 (10Base‑5), CS1W‑ETN11 (10Base‑T) and CJ‑series CJ1W‑ETN11 (10Base‑T) Ethernet Units. It provides detailed procedures for hardware setup, network parameters, IP address configuration, and the use of communication functions such as FINS, socket services, FTP server and mail.
The document also includes safety precautions, system‑setup memory allocations, testing methods, and a comprehensive troubleshooting guide. Technical specifications for each model are listed, including electrical requirements, dimensions, and environmental limits, to help users ensure proper integration into industrial automation systems. This manual is written in Chinese.
Omron CJ1 specifications
| Type | 10Base‑5 (CS1W‑ETN01) / 10Base‑T (CS1W‑ETN11, CJ1W‑ETN11) |
|---|---|
| Baud rate | 10 Mbps |
| Transmission media | Coaxial cable (10Base‑5) / Unshielded twisted‑pair (UTP) cable (10Base‑T) |
| Maximum segment length | 500 m (10Base‑5) / 100 m (10Base‑T) |
| External power supply | 0.3 A min. at 24 VDC (per node) |
| Operating temperature | 0 °C to 55 °C |
Source: OMRON CS1W-ETN01 (10Base-5) CS1W-ETN11 (10Base-T) CJ1W-ETN11 (10Base-T) Manual
All Omron CJ1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual 149 p
- Omron SYSMAC CJ1W-AD04U Operation Manual 76 p
- Omron CS1W-DRM21(-V1) / CJ1W-DRM21 DeviceNet Unit Operation Manual 289 p
- OMRON CS1W-ETN01 (10Base-5) CS1W-ETN11 (10Base-T) CJ1W-ETN11 (10Base-T) Manual 315 p
- omron SYSMAC CS CJ Series CS1W-EIP21 (100Base-TX) CJ1W-EIP21 (100Base-TX) EtherNet/IP Units OPERATION MANUAL 77 p
- Omron CJ1W-CTL41-E 4-Channel Counter Unit Operation Manual 125 p
- Omron CJ1M-CPU21/22/23 CPU Units Operation Manual 262 p
- Omron CS1W-CRM21/CJ1W-CRM21 CompoNet Master Units Operation Manual 235 p
- Omron CJ1W-MCH71 Motion Control Unit User Manual 51 p

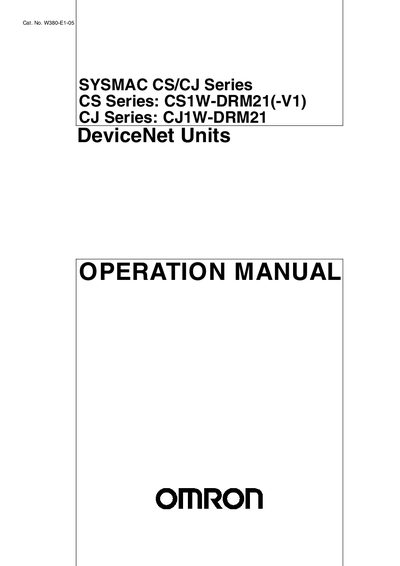

- Omron CS1W-DRM21(-V1) & CJ1W-DRM21 DeviceNet Units Operation Manual 289 p
- Omron CJ1W‑TC Temperature Control Units Operation Manual 113 p
- Omron CJ1M-CPU22/CPU23 Operation Manual 181 p
- Omron CJ1W-V600C11/V600C12 and CS1W-V600C11/V600C12 ID Sensor Unit User Manual 4 p
- Omron CJ1 Series PLC User Manual 57 p
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the warranty period for the ID sensor units?
Omron provides a one‑year warranty from the date of sale for the products.
From: Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual
Can these sensor units be used as safety‑rated components?
No, the products are not safety rated and should not be relied upon as safety components.
From: Omron CS1W-V600C11/CS1W-V600C12/CJ1W-V600C11/CJ1W-V600C12 Operation Manual
What is the maximum baud rate of the Ethernet Units?
The Ethernet Units operate at a baud rate of 10 Mbps.
From: OMRON CS1W-ETN01 (10Base-5) CS1W-ETN11 (10Base-T) CJ1W-ETN11 (10Base-T) Manual
What type of cable is required for the CS1W‑ETN01 unit?
The CS1W‑ETN01 (10Base‑5) uses coaxial cable for transmission.
From: OMRON CS1W-ETN01 (10Base-5) CS1W-ETN11 (10Base-T) CJ1W-ETN11 (10Base-T) Manual
How many counters does the CJ1W-CTL41-E have?
The unit provides four independent counters.
From: Omron CJ1W-CTL41-E 4-Channel Counter Unit Operation Manual
What is the operating temperature range of the unit?
It can operate from 0 °C up to 55 °C.
From: Omron CJ1W-CTL41-E 4-Channel Counter Unit Operation Manual
